关于王牌电机

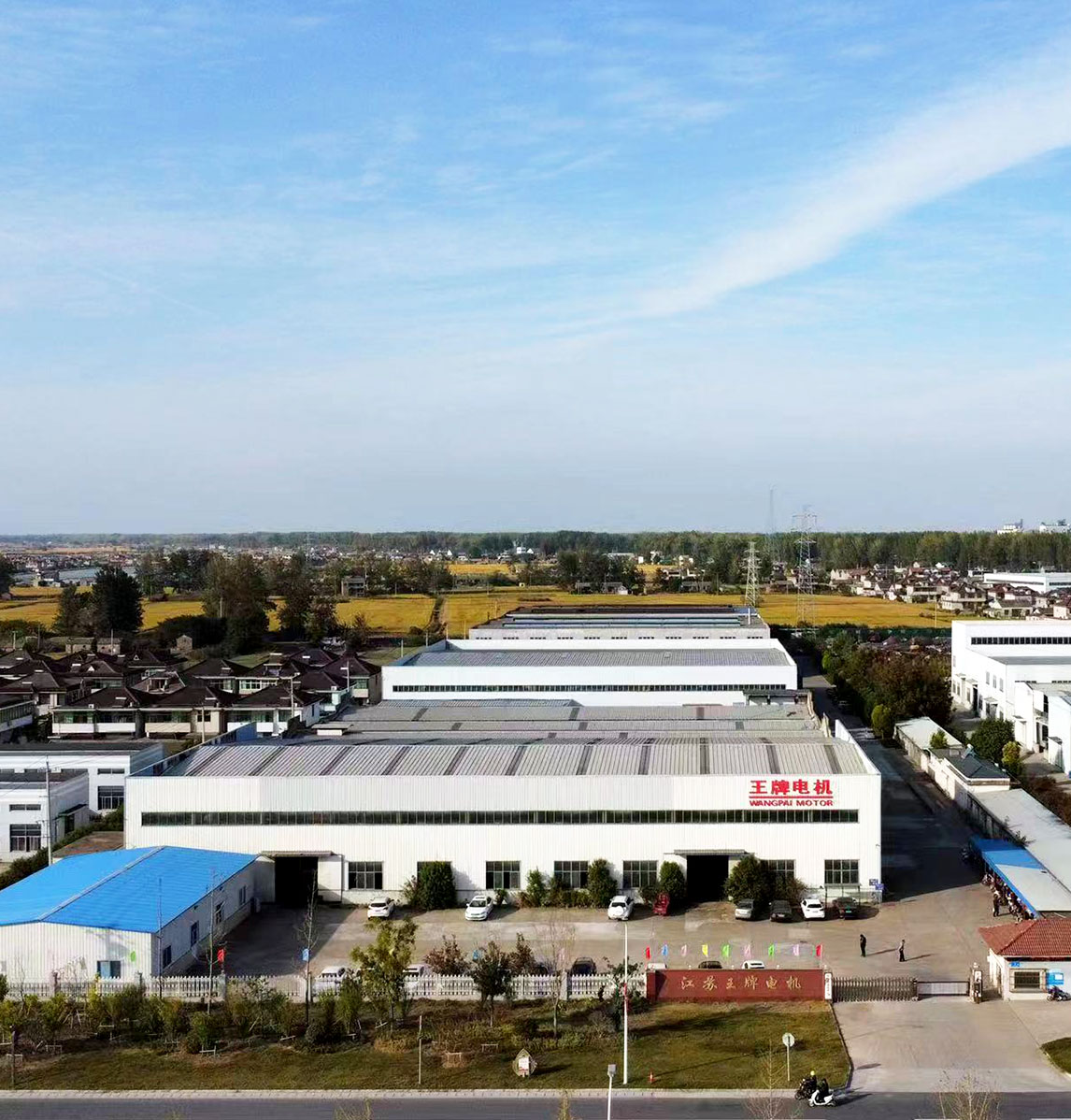

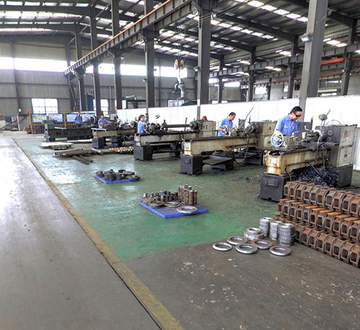

江苏王牌电机制造有限公司成立于2004年,总部坐落于江苏省扬州市,是一家专业从事直流电机、异步电机、永磁同步电机、防爆电机和电机控制柜生产的骨干企业。公司拥有超过1亿元的固定资产,占地约6万平方米,拥有数百名工程师、技术人员和工人,技术力量雄厚,加工能力强,检测设备先进。主要产品包括交流变频电机、交流高压变频电机、永磁变频同步电机、交流高压永磁变频同步电机、永磁直驱电机、异步隔爆电机、异步伺服电机、Z4直流电机、Z系列直流电机和自动化控制系统。公司已通过ISO9001质量管理体系认证,产品质量符合国家标准和行业标准,广泛应用于电力、煤炭、冶金、化工、造纸、印染、橡胶、军工、科技等各个行业,深受国内外客户信赖。
ISO9001 质量管理体系
ISO14001 环境管理体系

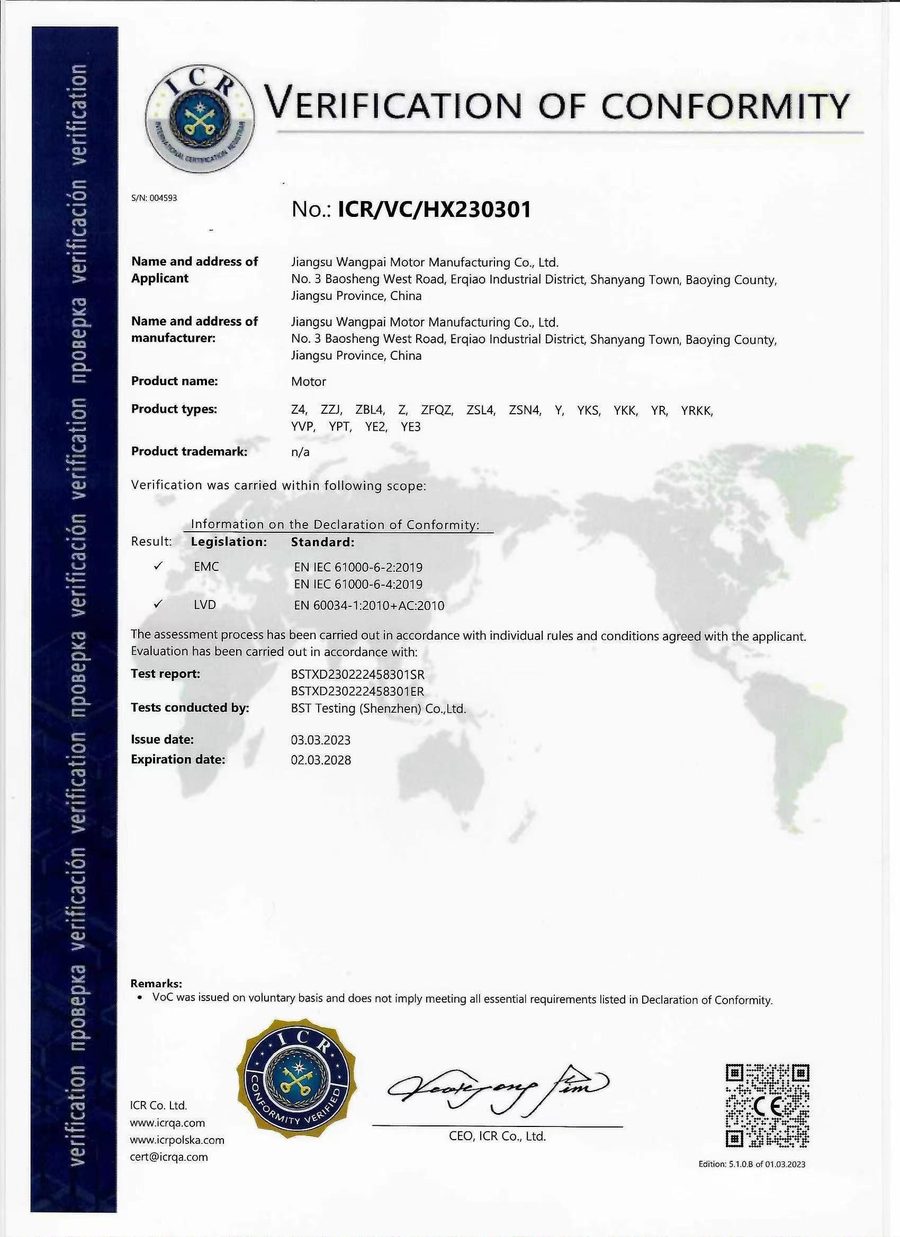

CE 认证
高新技术企业
专精特新企业四大产品线
直流电机 · 异步电机 · 永磁同步电机 · 防爆电机

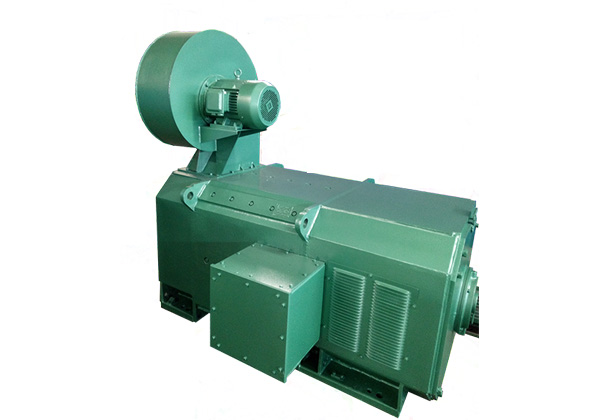

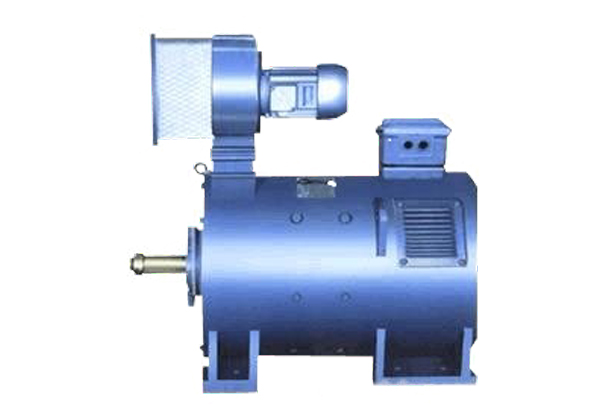

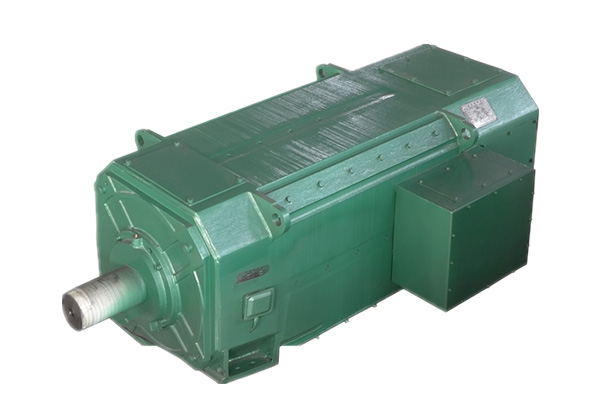

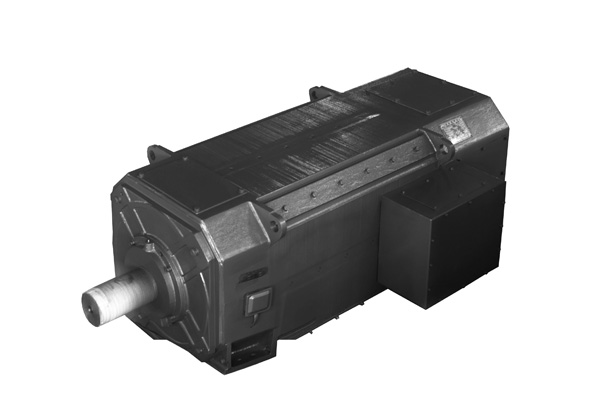

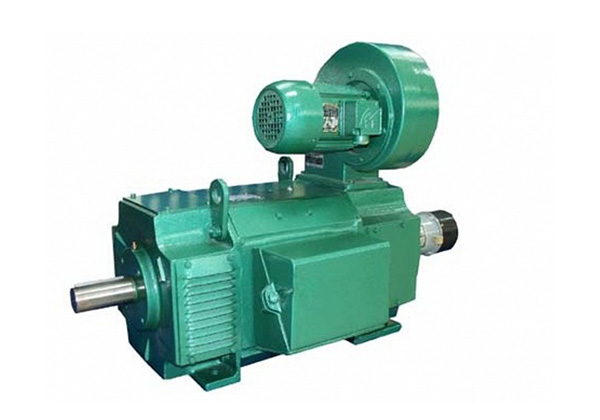

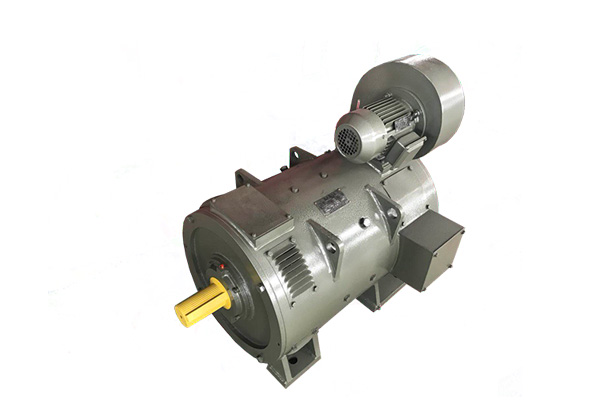

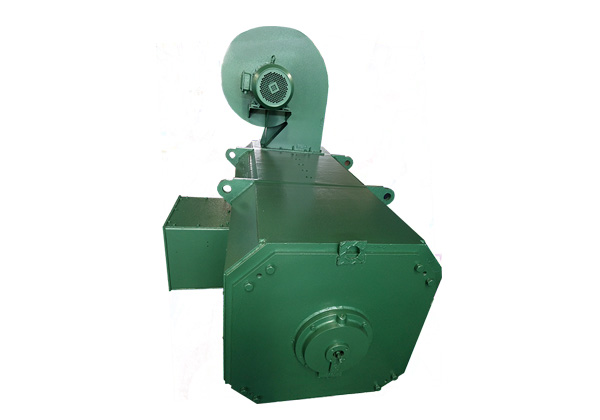

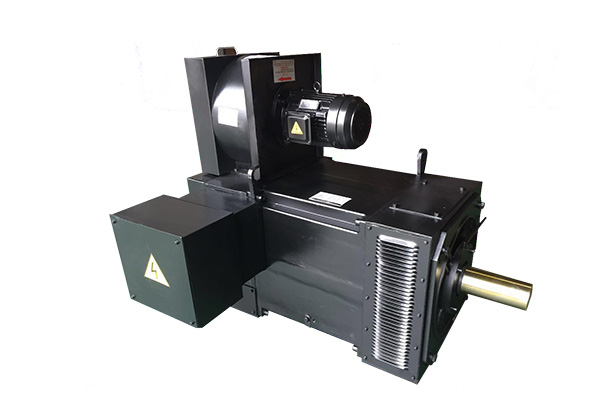

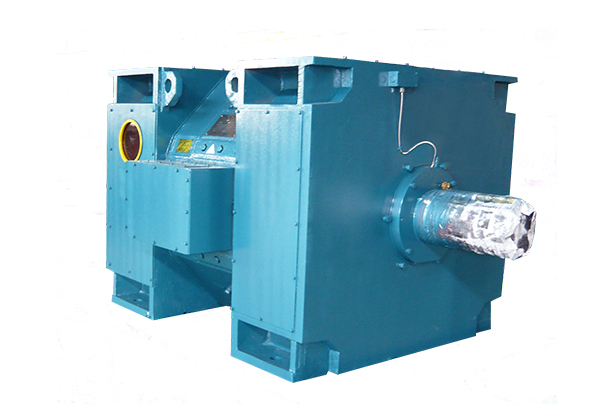

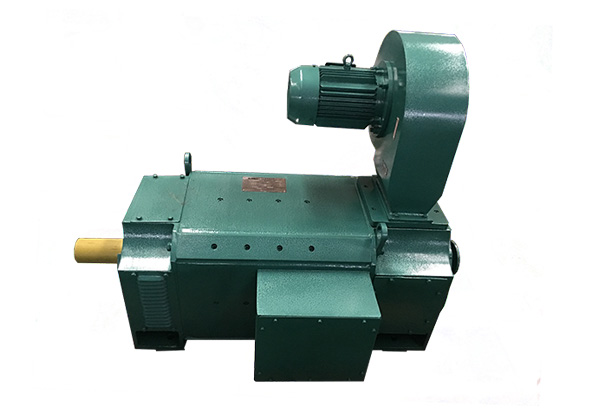

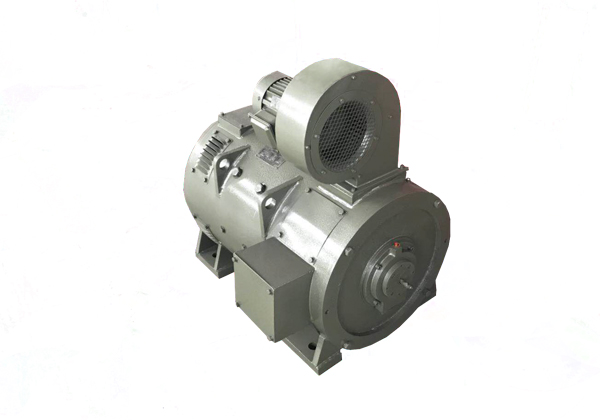

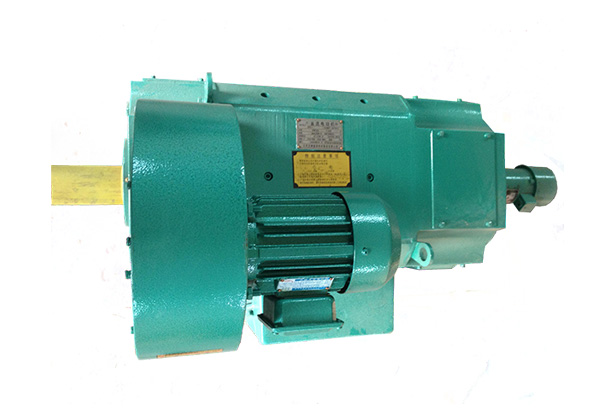

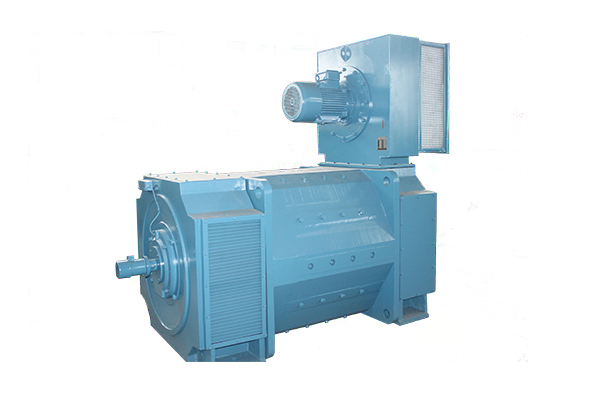

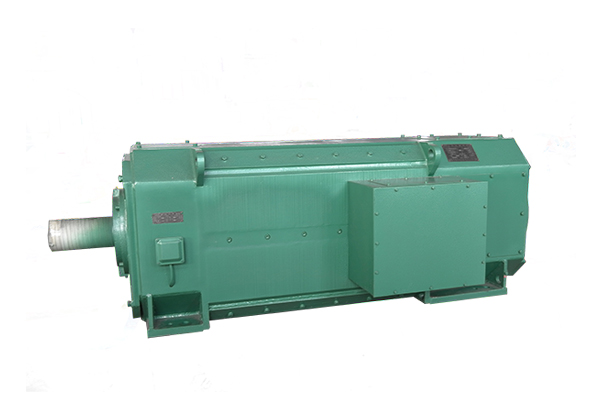

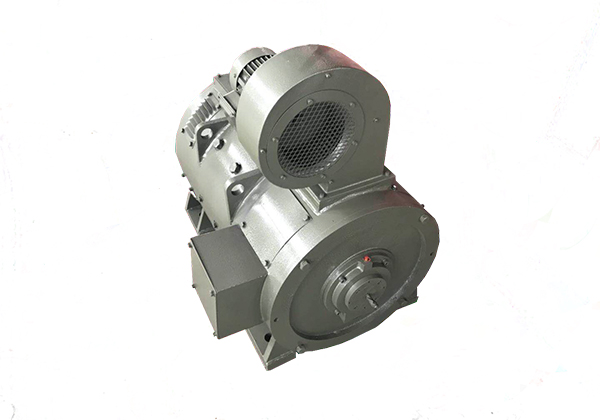

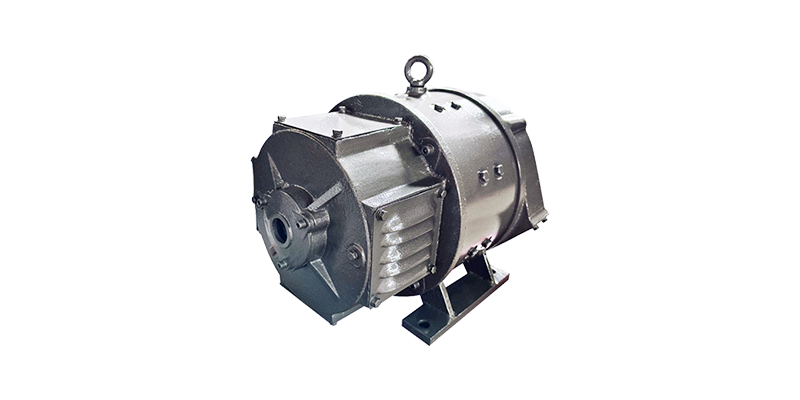

直流电机DC Motor
Z4、Z、ZZJ 等系列直流电机,用于轧机、起重、冶金、石油钻井等需要精确调速与高启动转矩的场合。功率 0.4~1600kW,电压 110~750V。

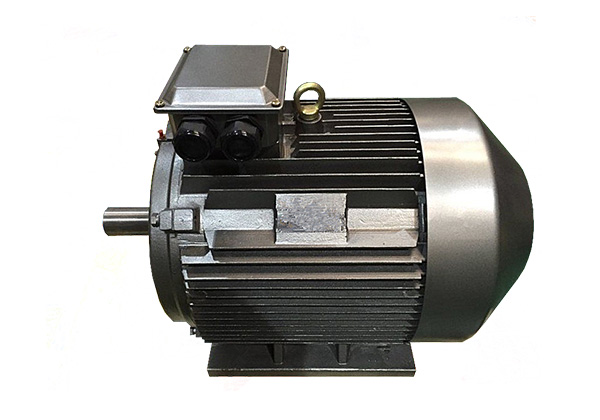

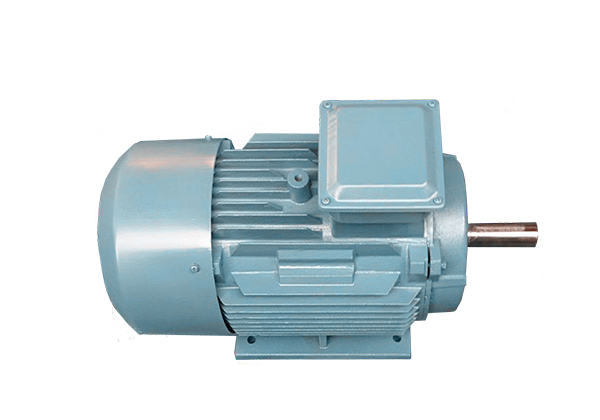

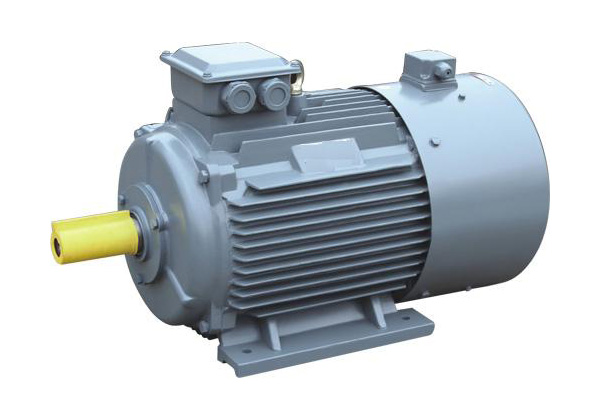

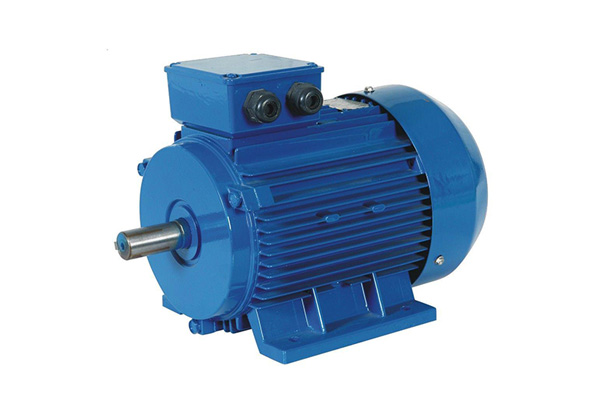

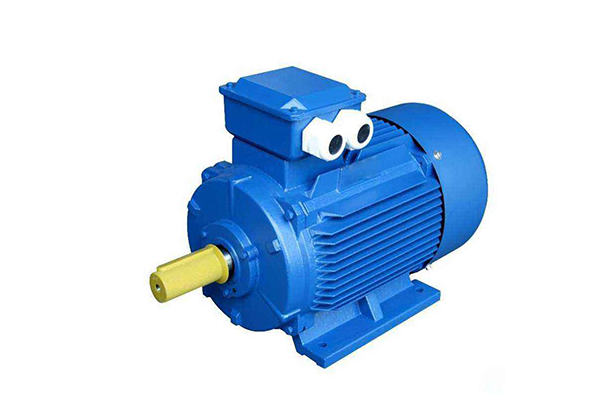

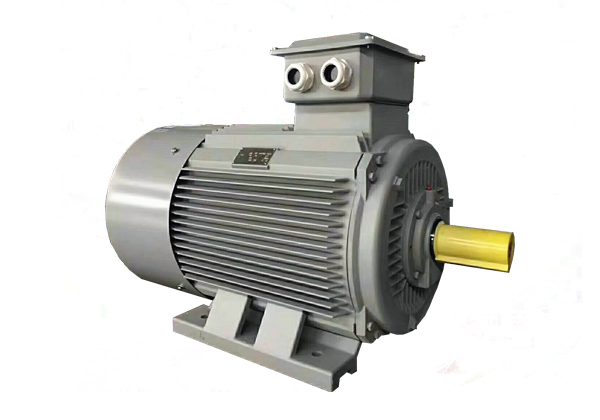

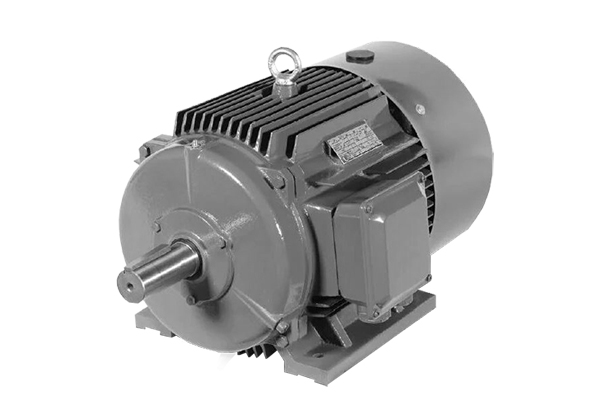

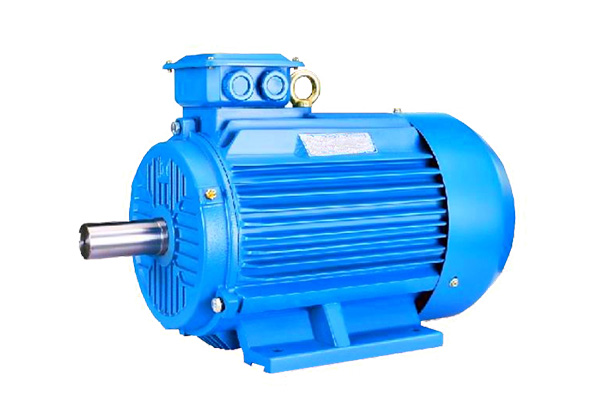

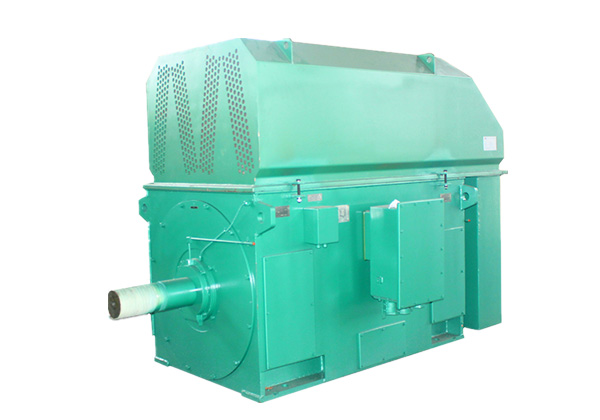

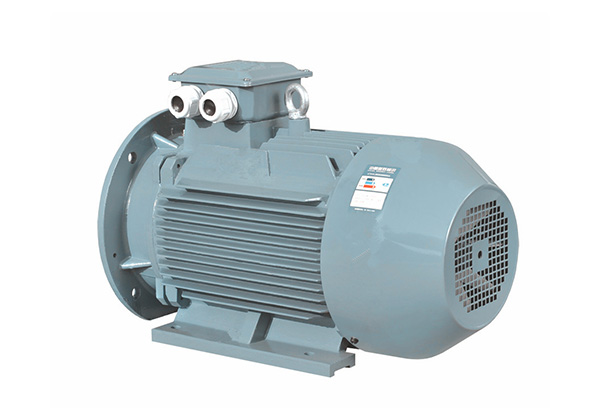

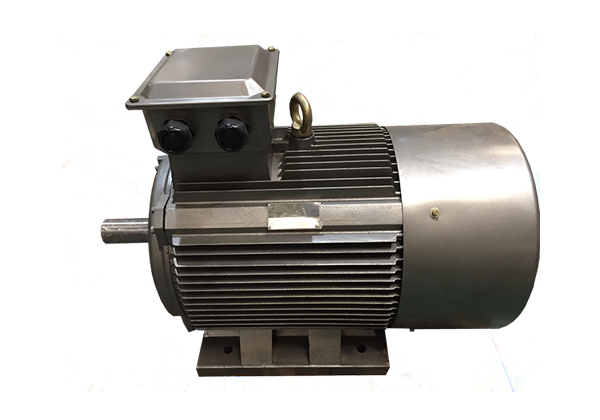

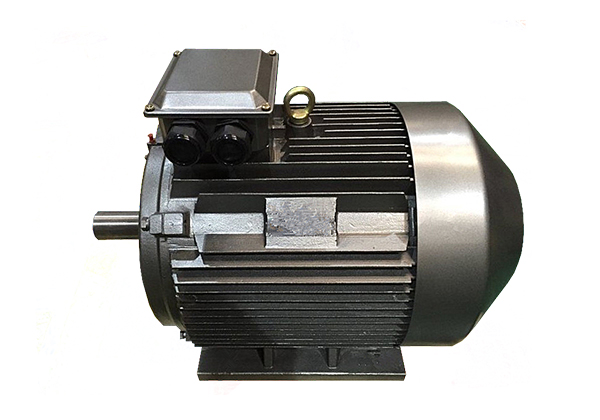

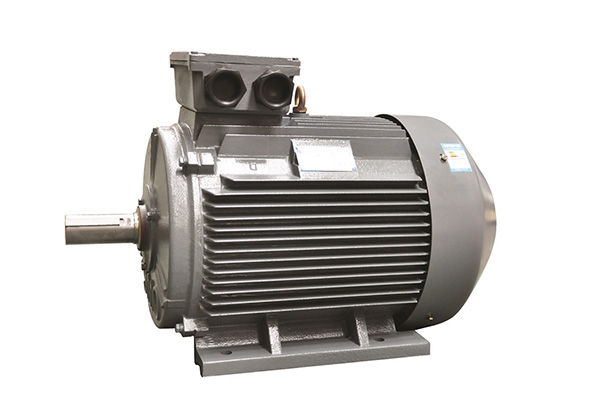

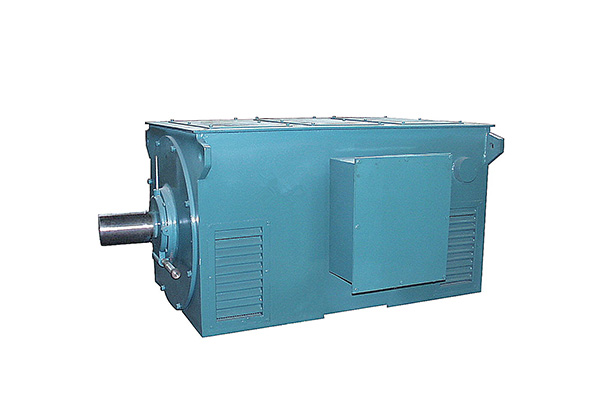

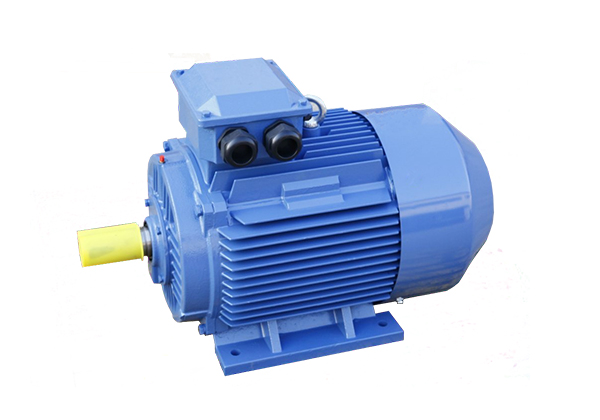

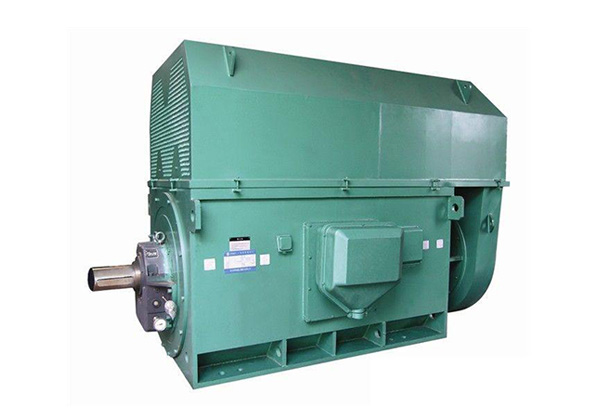

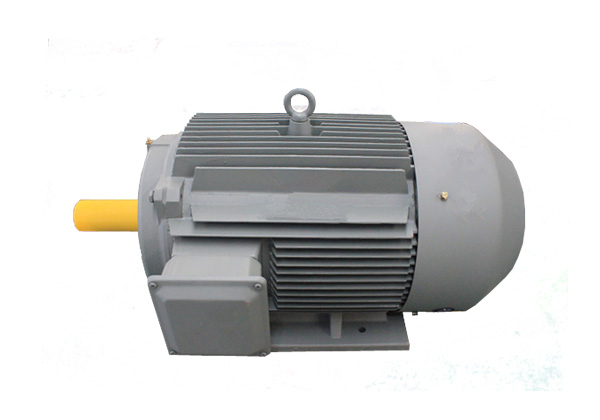

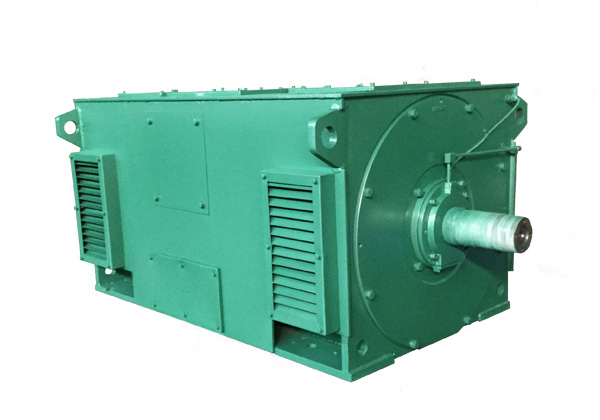

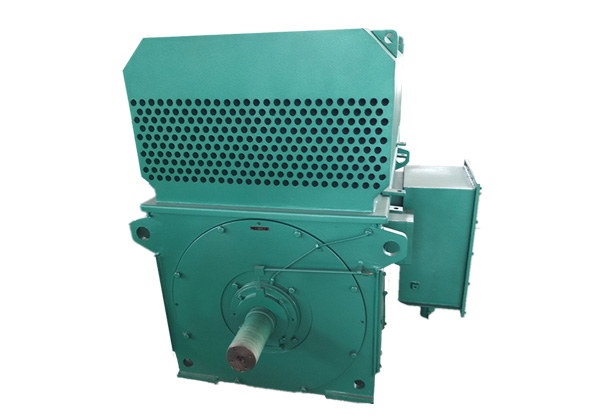

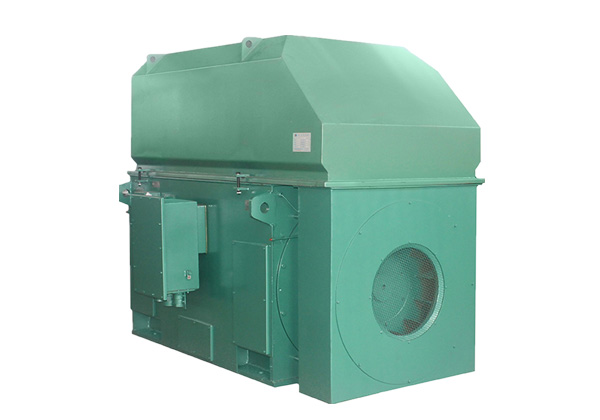

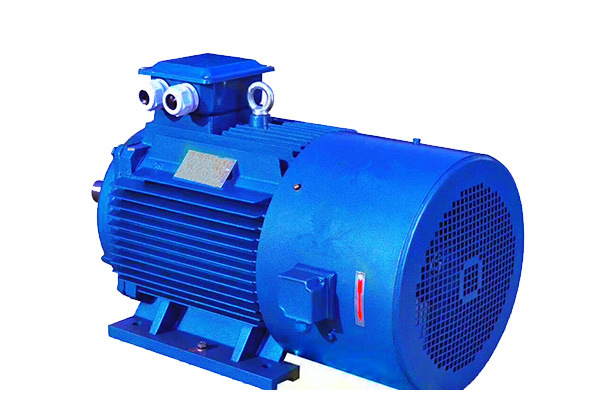

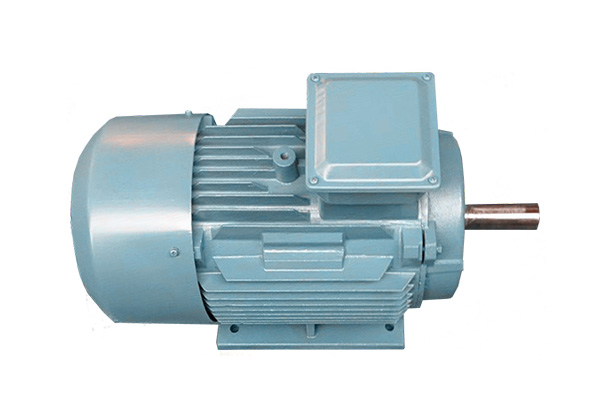

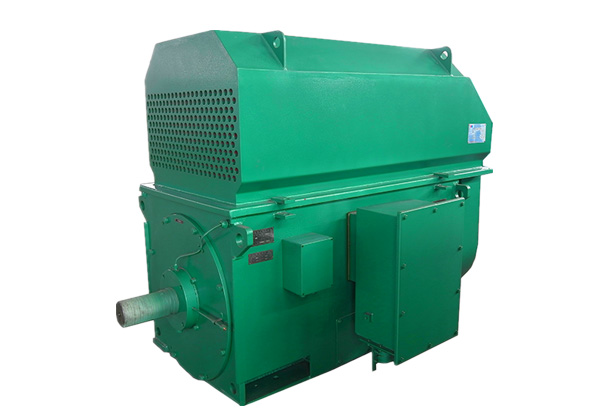

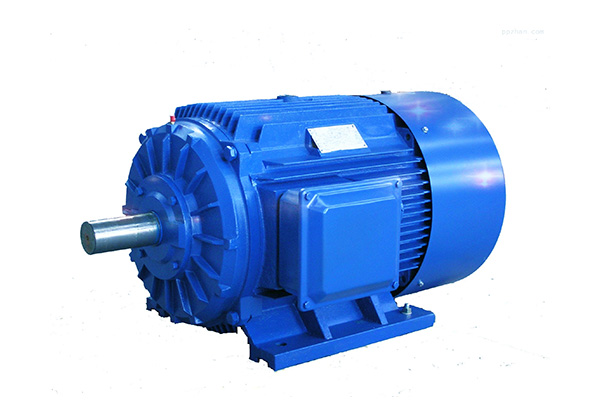

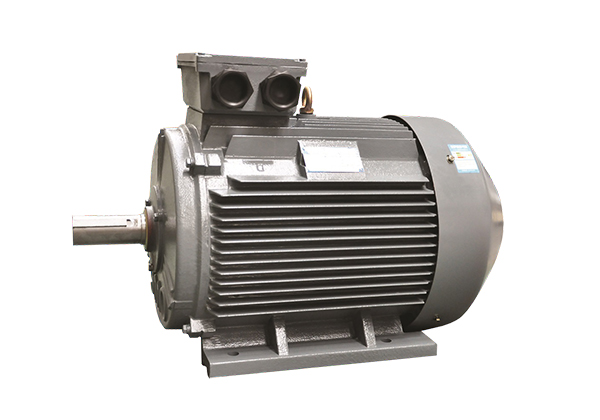

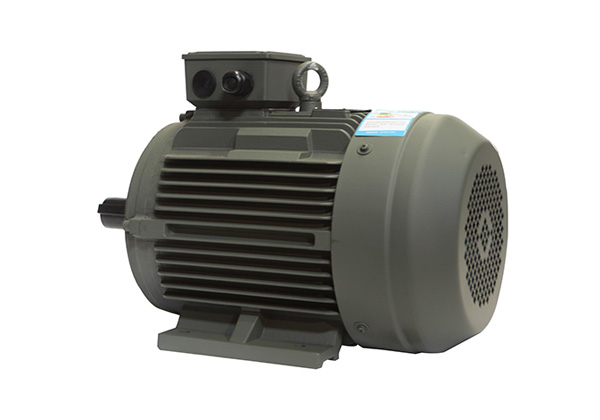

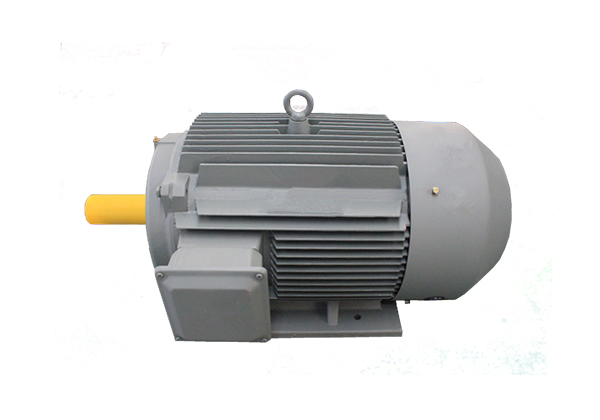

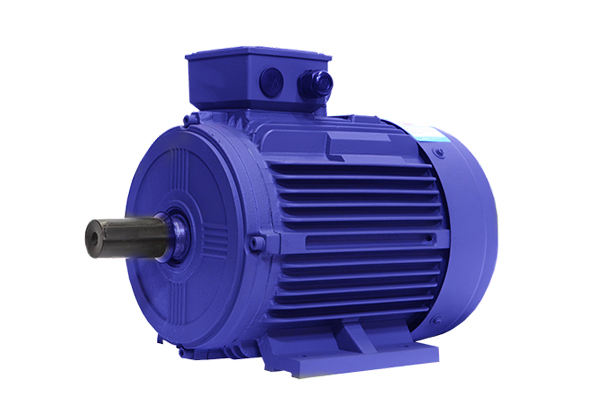

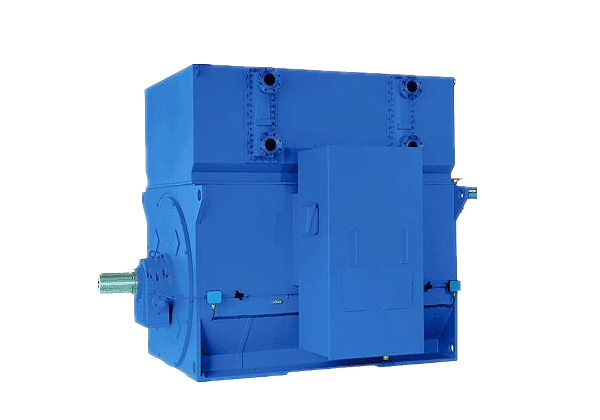

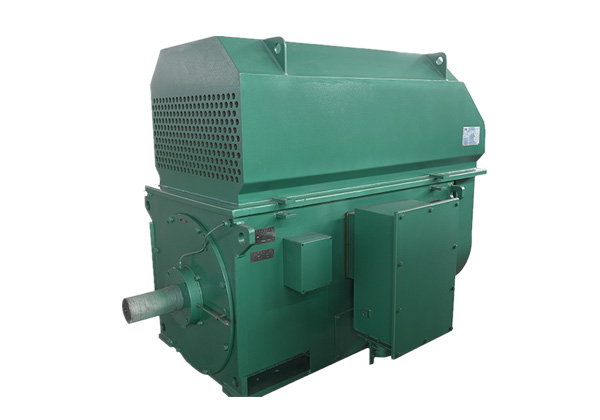

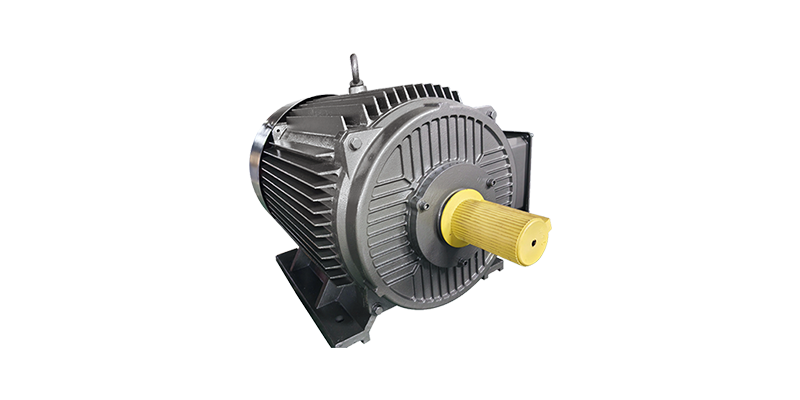

异步电机Asynchronous Motor

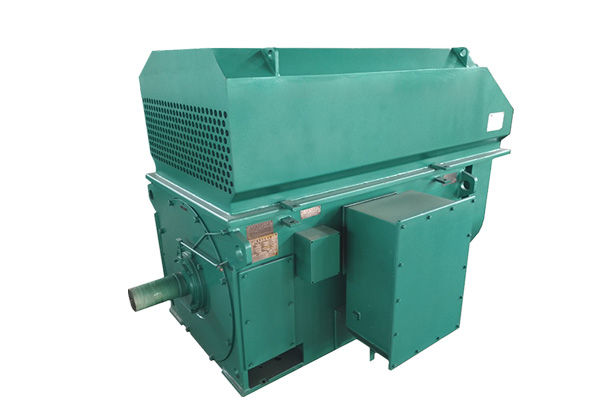

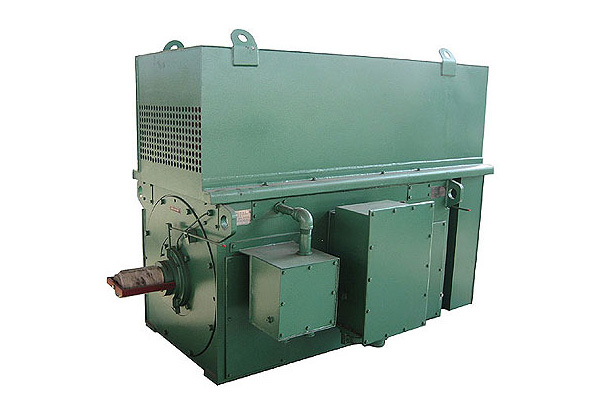

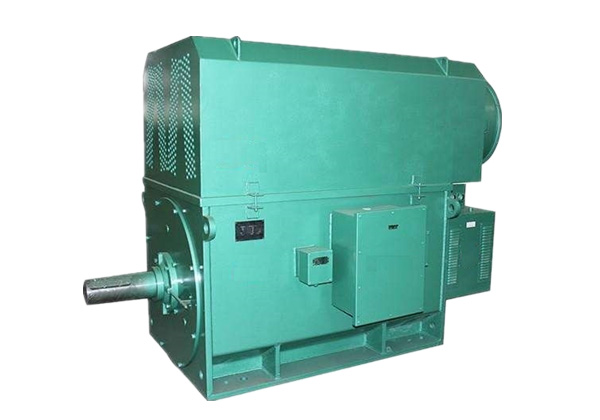

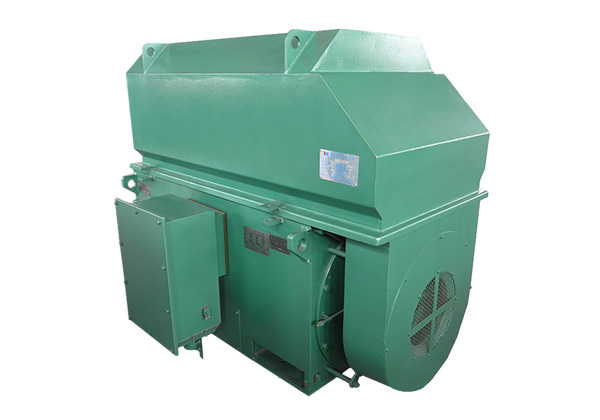

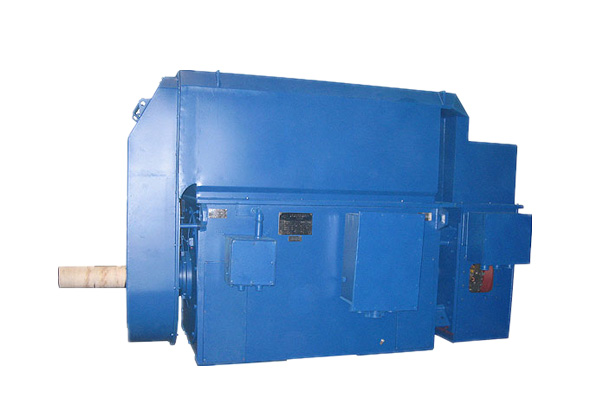

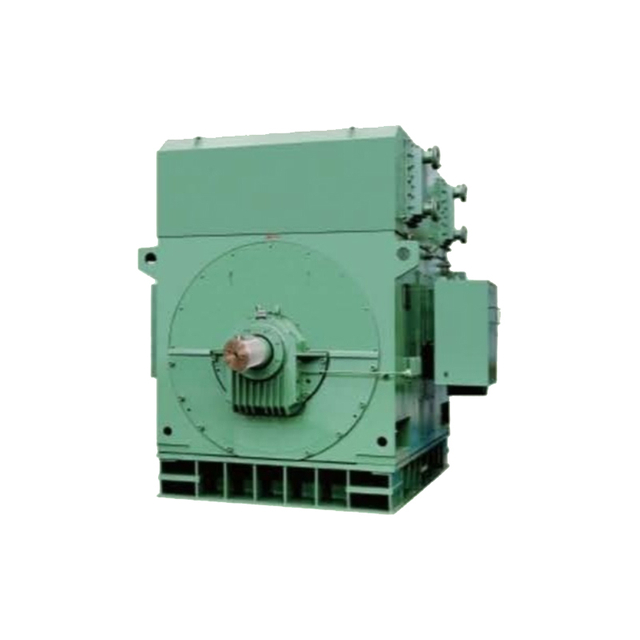

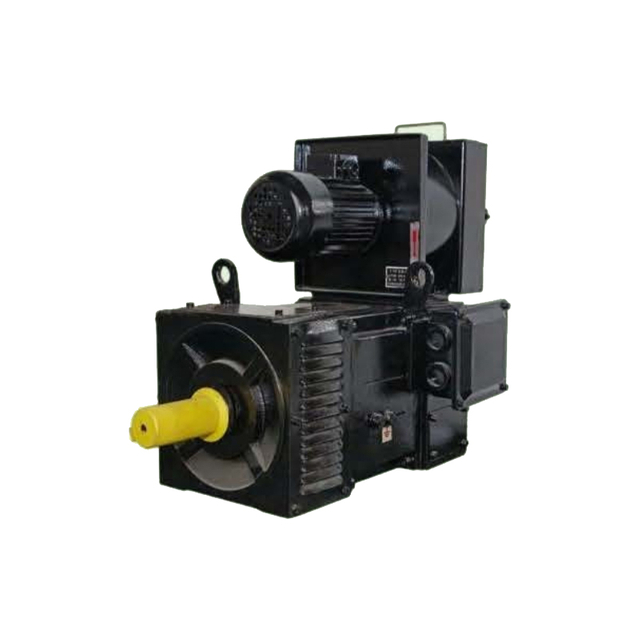

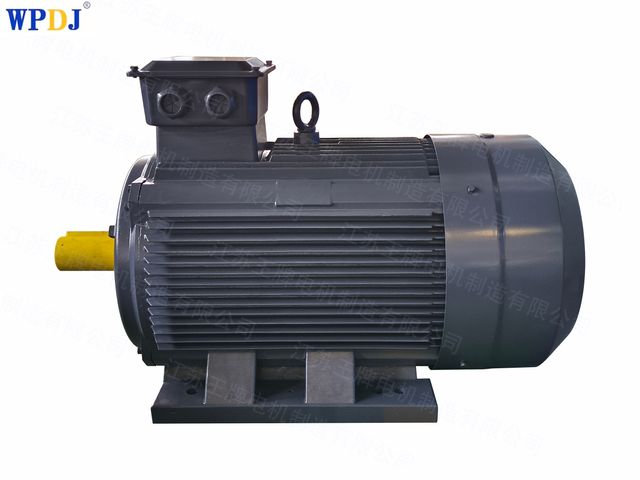

YE3、Y、YKK、YR、YKS 等交流异步电机,覆盖低压通用到高压大功率,用于风机、水泵、水泥、冶金等场合。功率 0.55~5000kW,电压 380~10000V。

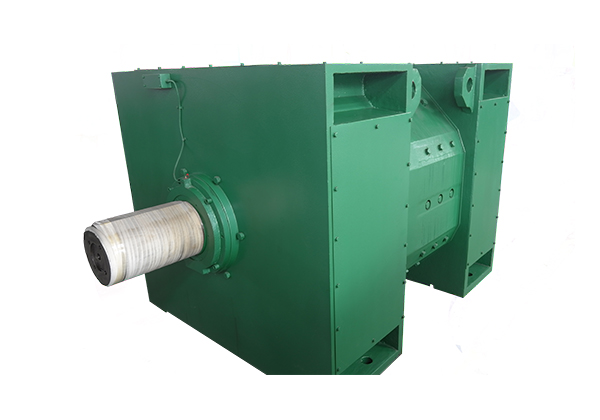

永磁同步电机Permanent Magnet Synchronous Motor

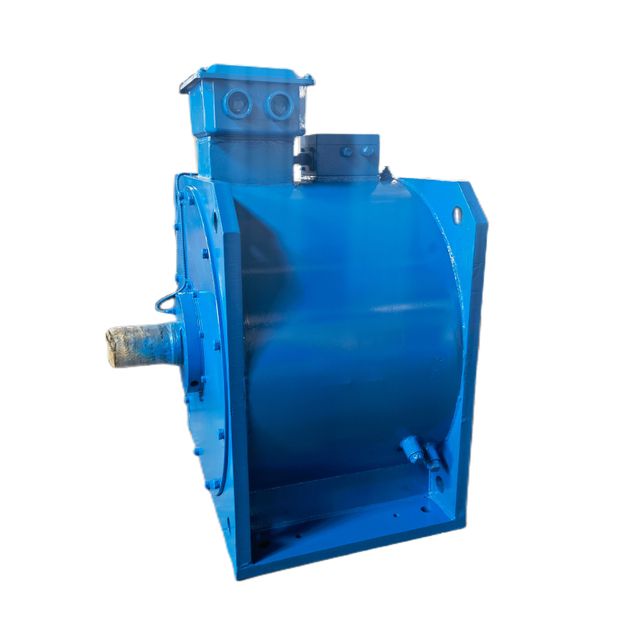

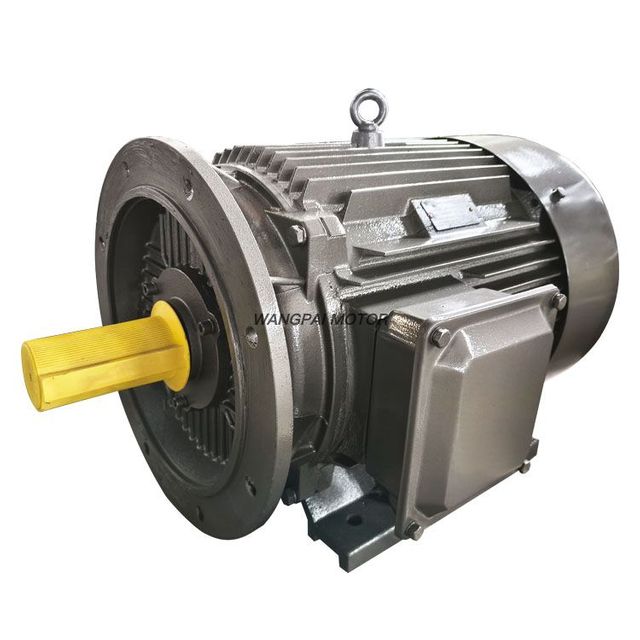

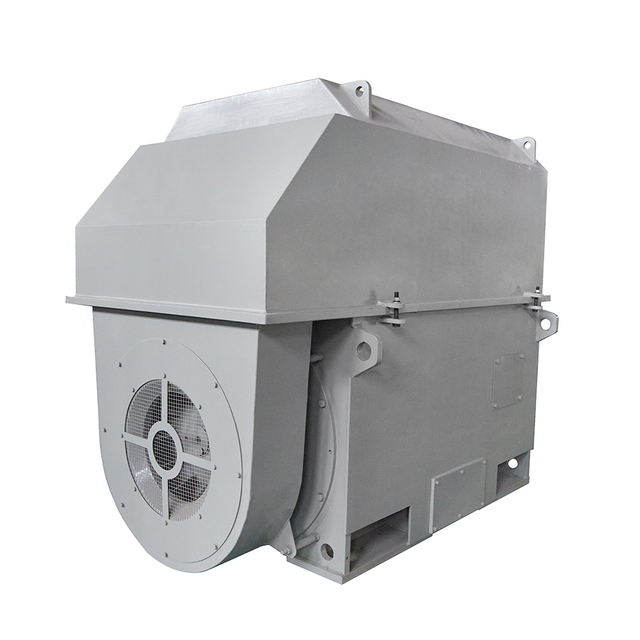

TYCP、TYPKK、TPTYC 等永磁同步电机,高效率、高功率密度,广泛用于节能变频驱动与直驱场合。功率 7.5~5000kW,电压 380~10000V。

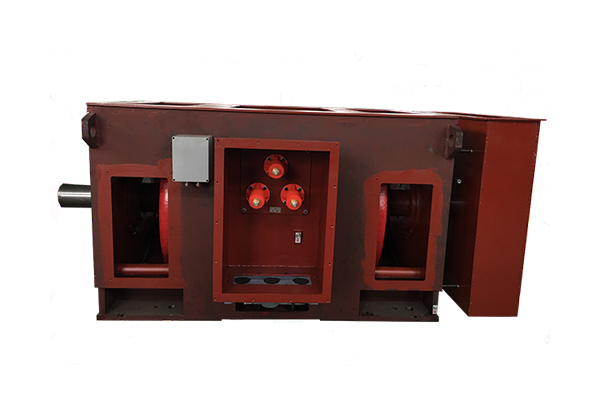

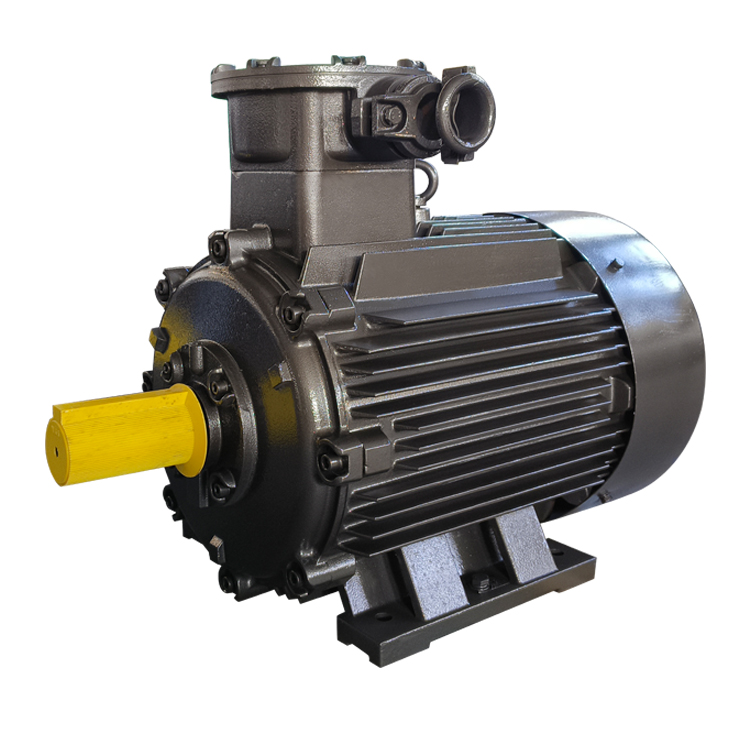

防爆电机Explosion-proof Motor
YBX4、TBVP、TBGP 等防爆电机,适用于石油、化工、矿山等易燃易爆场合。功率 7.5~5000kW,电压 380~10000V。

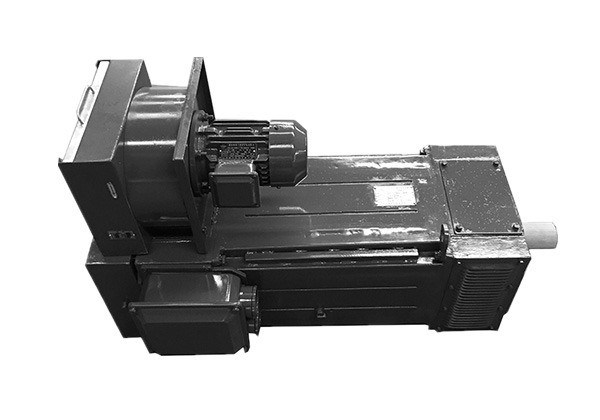

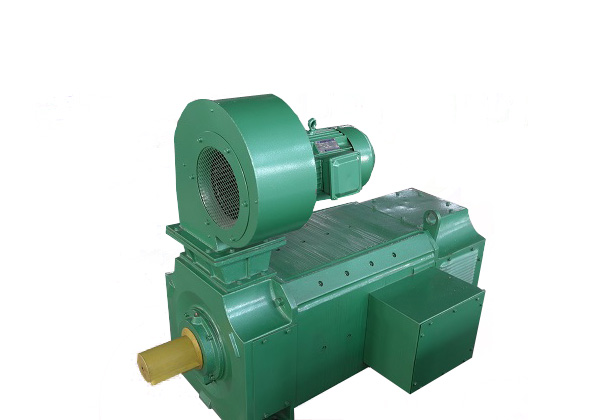

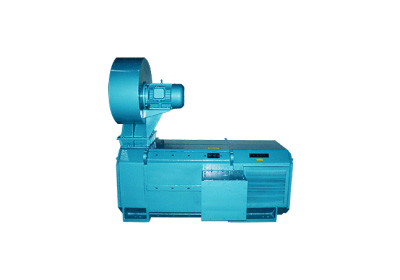

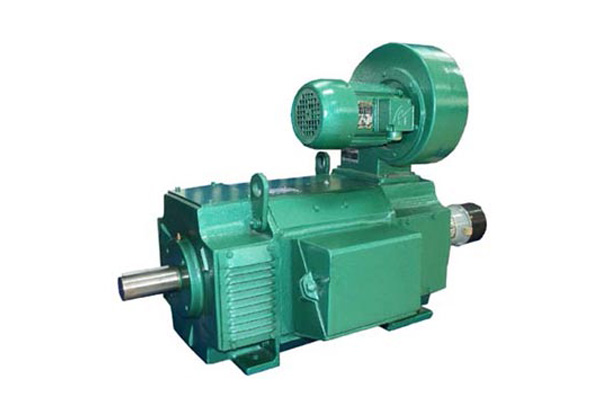

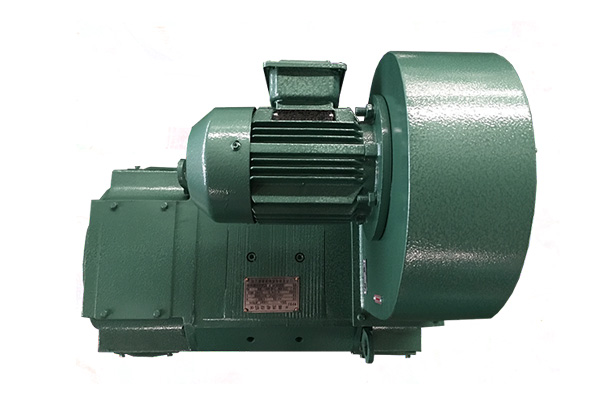

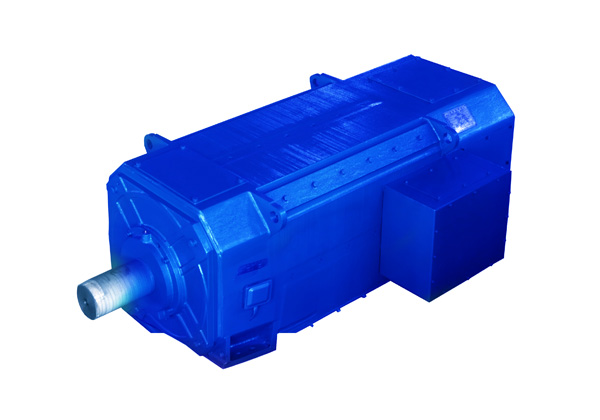

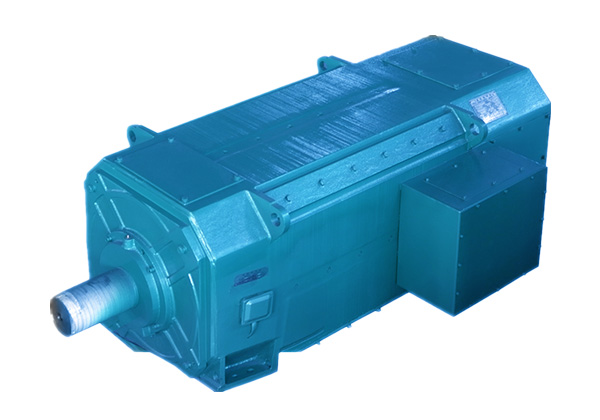

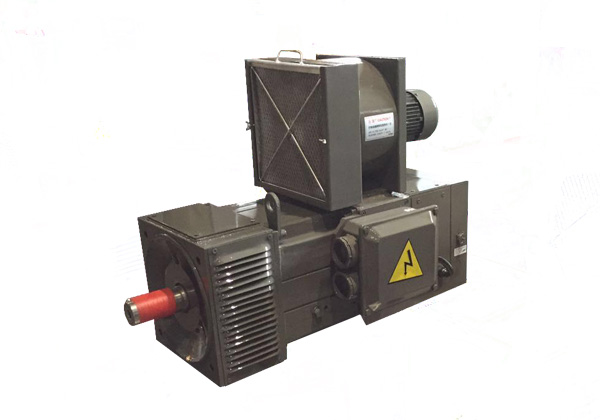

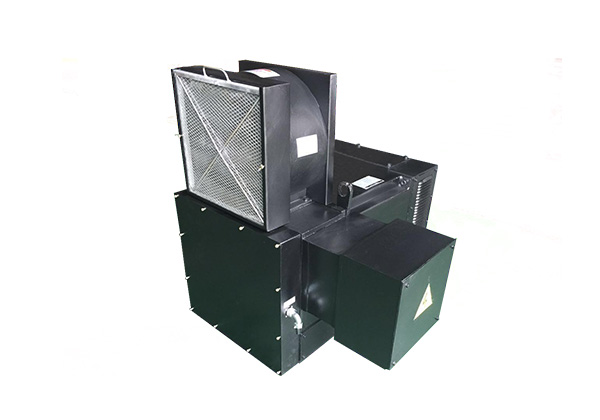

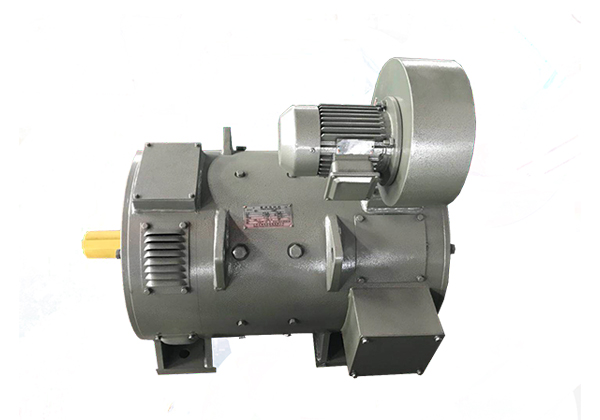

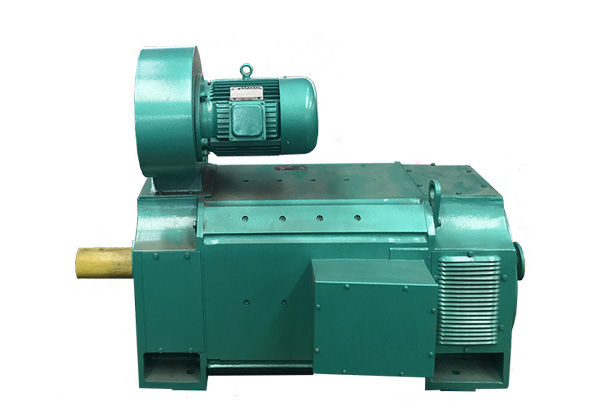

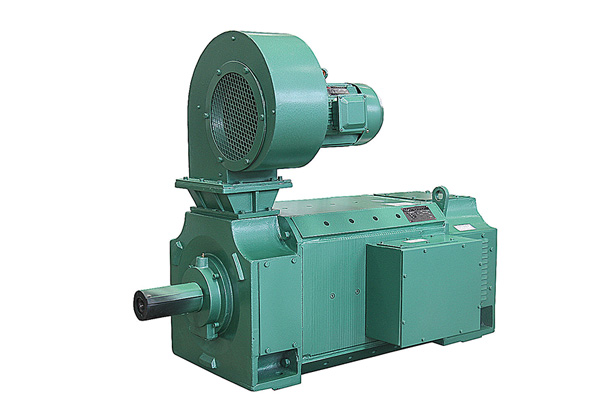

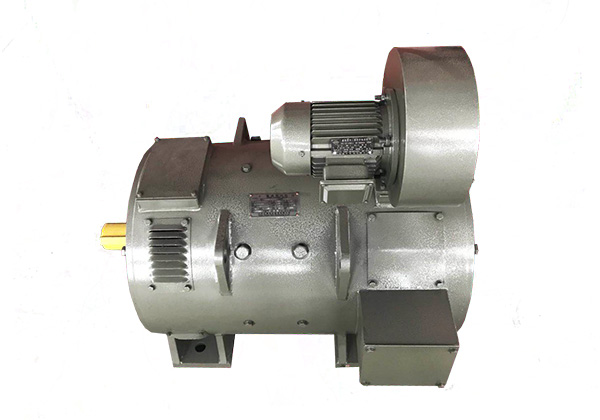

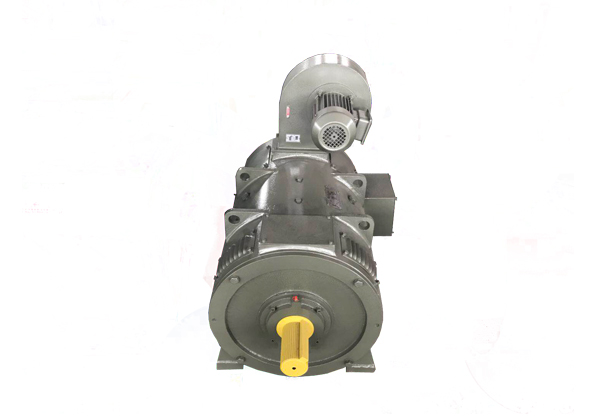

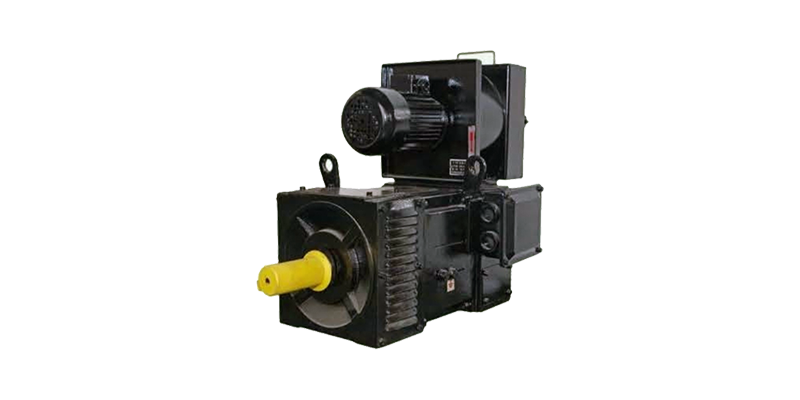

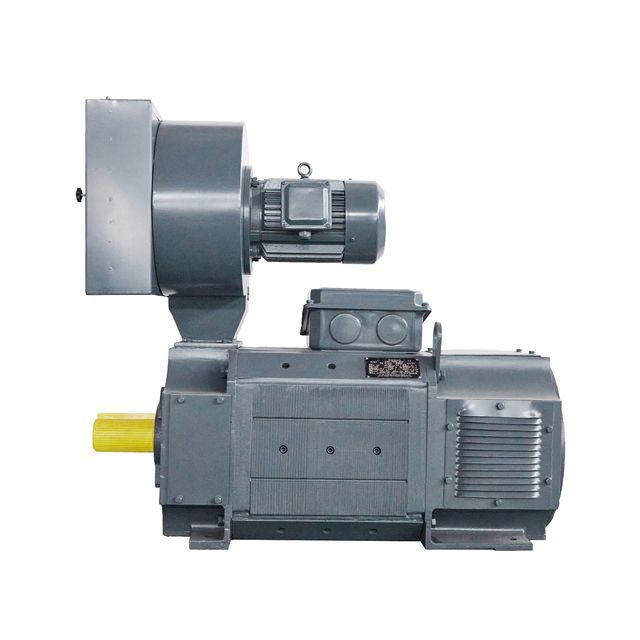

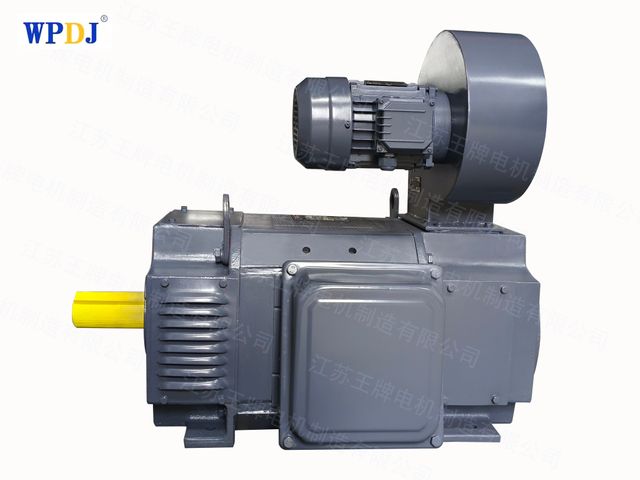

Z4 系列直流电机
覆盖 13 个中心高、67 个机架型号、共 316 条规格,提供 160/400/440V 电压等级。
| 系列 | 规格数 | 功率范围 (kW) | 电压 (V) | 详情 |
|---|---|---|---|---|

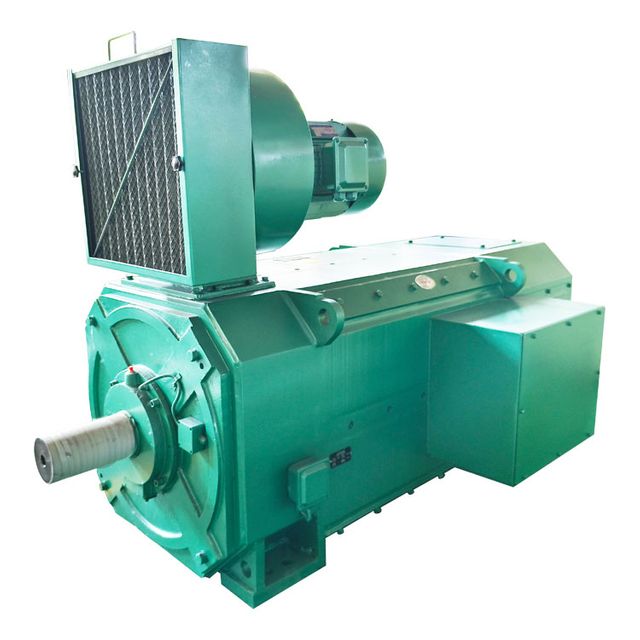

| Z4-100 | 8 | 1.4~4 | 160/400/440 | 查看规格表 |
| Z4-112 | 31 | 1.9~15 | 160/400/440 | 查看规格表 |
| Z4-132 | 18 | 7~30 | 400/440 | 查看规格表 |

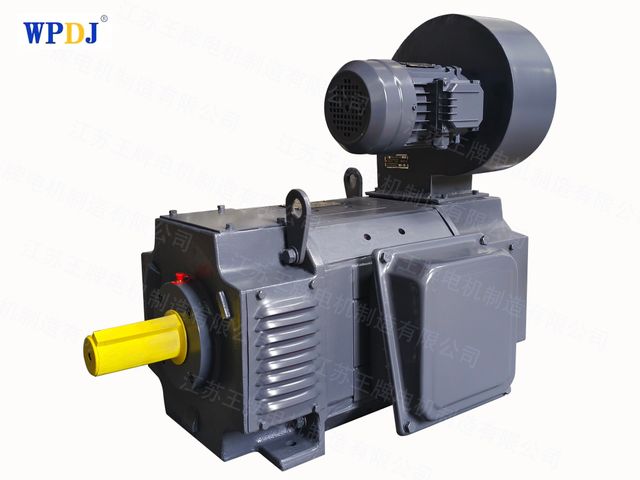

| Z4-160 | 14 | 16.5~55 | 400/440 | 查看规格表 |
| Z4-180 | 26 | 13~90 | 400/440 | 查看规格表 |
| Z4-200 | 24 | 19.5~132 | 400/440 | 查看规格表 |
| Z4-225 | 20 | 33~132 | 400/440 | 查看规格表 |
| Z4-250 | 26 | 49~220 | 400/440 | 查看规格表 |
| Z4-280 | 26 | 80~315 | 400/440 | 查看规格表 |
| Z4-315 | 39 | 98~400 | 400/440 | 查看规格表 |
| Z4-355 | 32 | 166~450 | 400/440 | 查看规格表 |
| Z4-400 | 24 | 180~550 | 400/440 | 查看规格表 |
| Z4-450 | 28 | 200~600 | 400/440 | 查看规格表 |

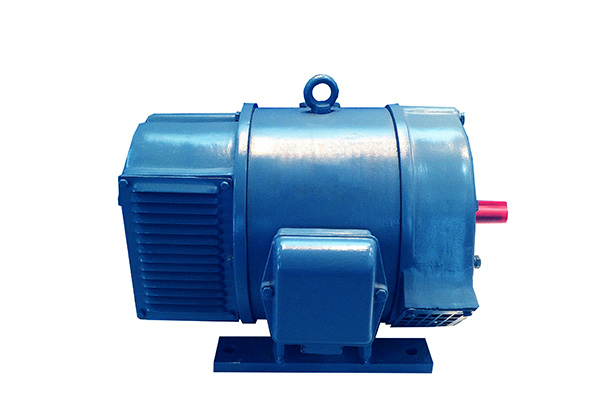

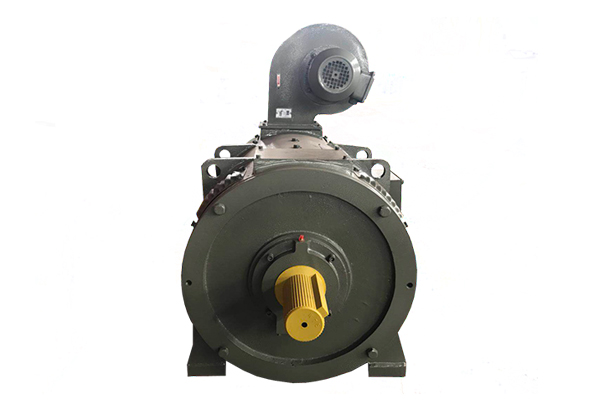

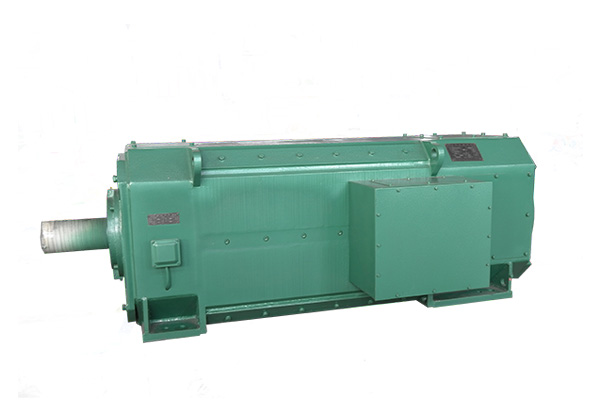

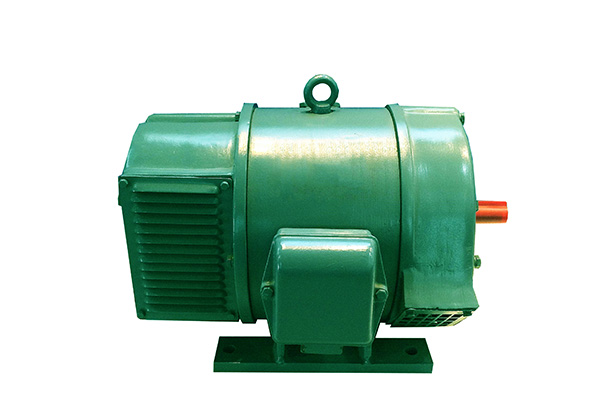

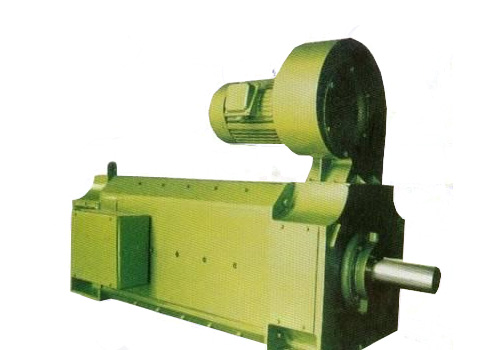

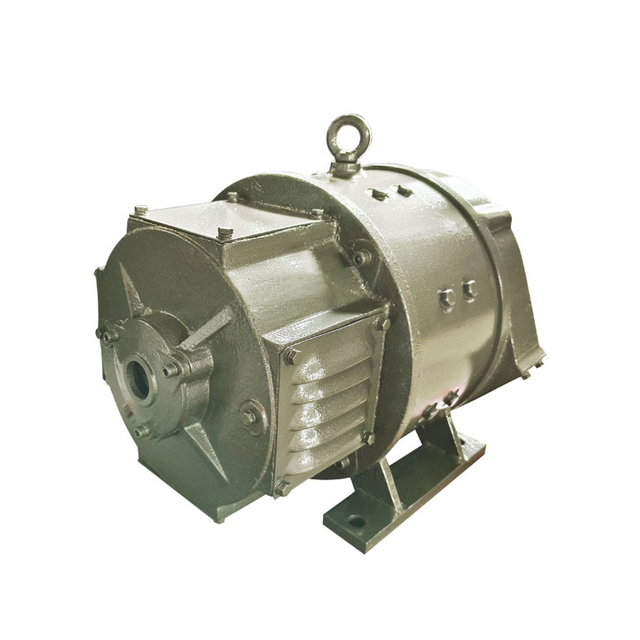

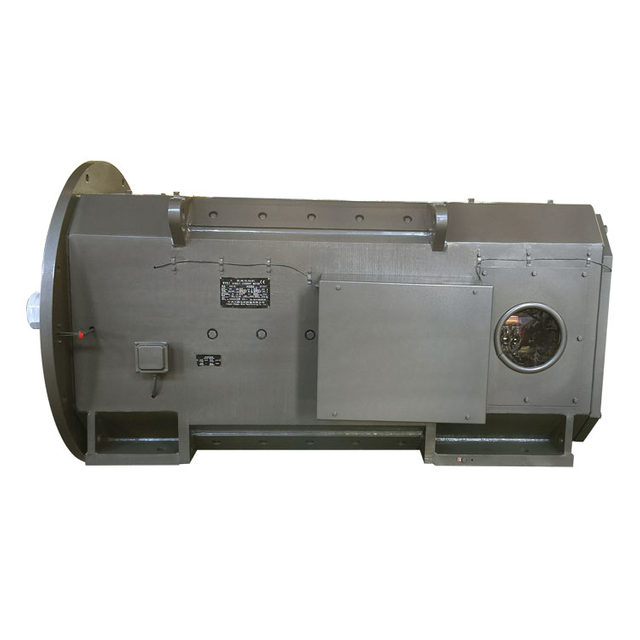

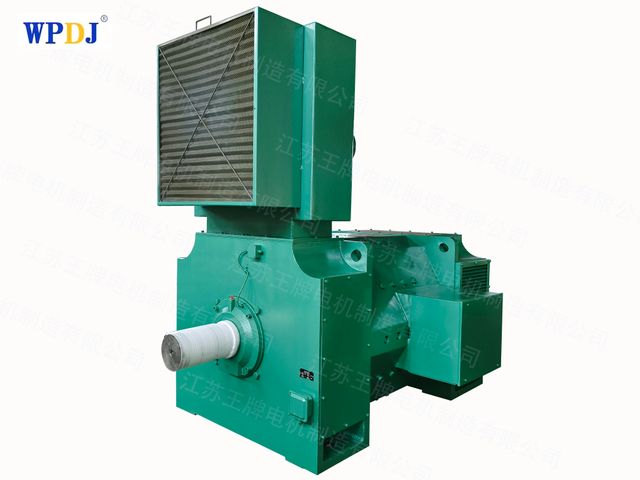

Z 系列直流电机
大中型通用直流电机,覆盖 25 个机架型号、8 个中心高。

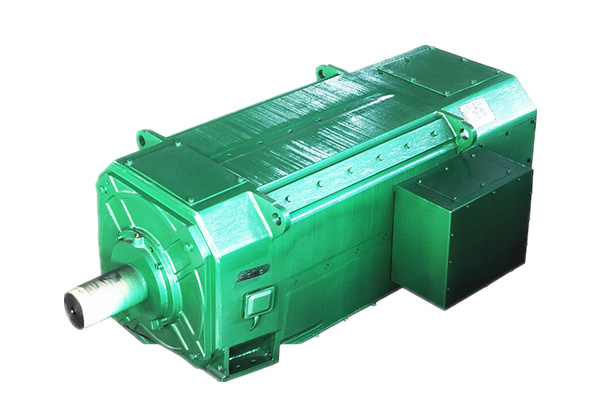

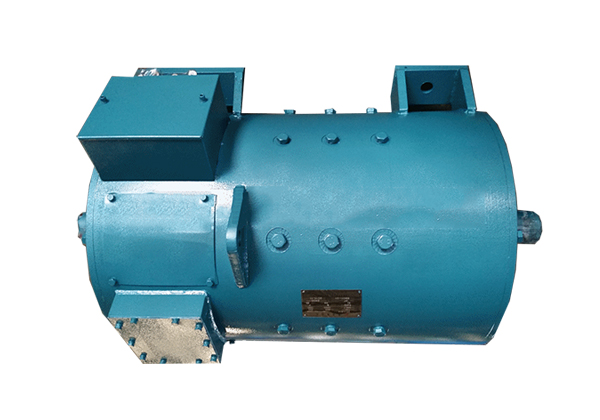

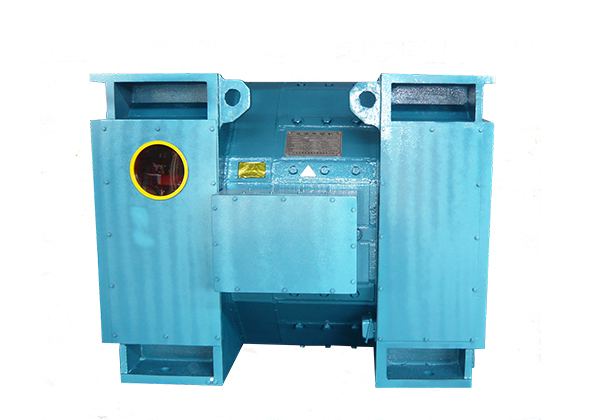

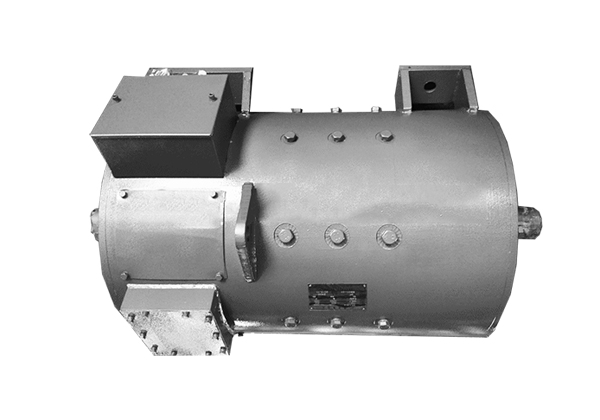

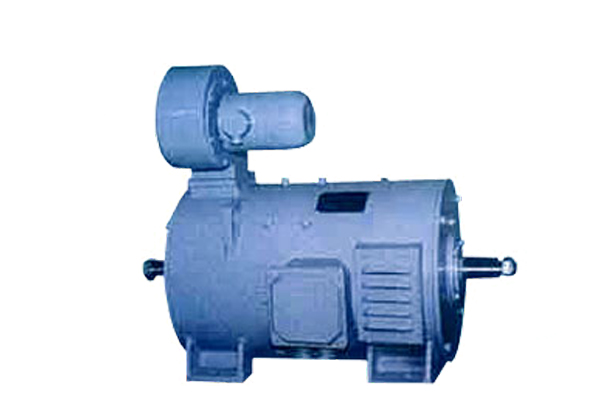

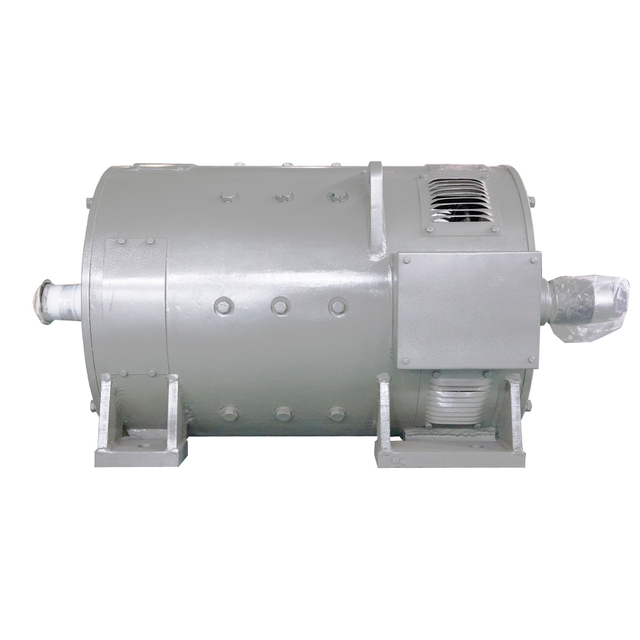

ZZJ800 系列直流电机
起重机 / 冶金用直流电机,覆盖 12 个机座号,功率 3.75~186 kW。
| 机座号 | 功率 (kW) | 重量 (kg) |
|---|---|---|
| ZZJ-802A | 3.75 | 240 |
| ZZJ-802B | 5.6 | 270 |
| ZZJ-802C | 7.5 | 270 |
| ZZJ-803 | 11.2 | 390 |
| ZZJ-804 | 15.0 | 550 |
| ZZJ-806 | 22.4 | 870 |
| ZZJ-808 | 37.3 | 1030 |
| ZZJ-810 | 52 | 1250 |
| ZZJ-812 | 75 | 1550 |
| ZZJ-814 | 112 | 2400 |
| ZZJ-816 | 150 | 2400 |
| ZZJ-818 | 186 | 4300 |
产品目录
覆盖 68 个产品型号,可按分类筛选或搜索。
应用领域
业务遍及重工业与民生场景。

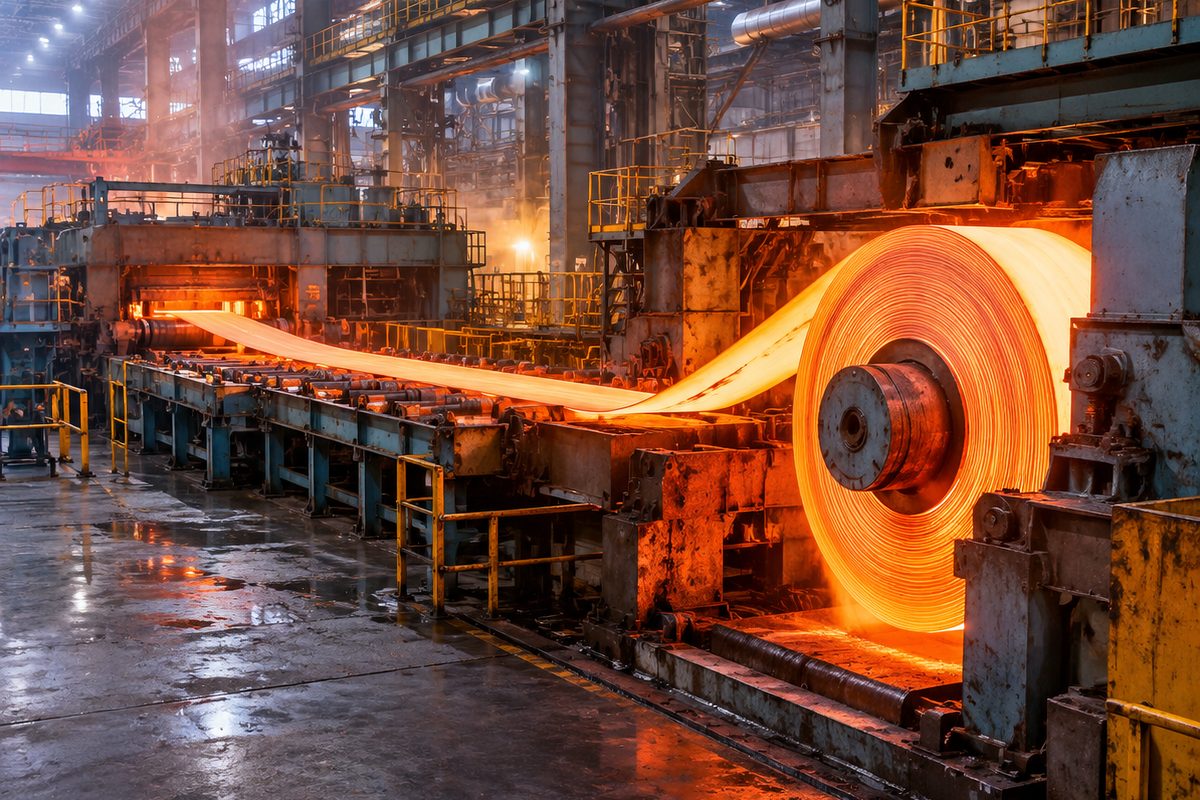

轧机卷取机

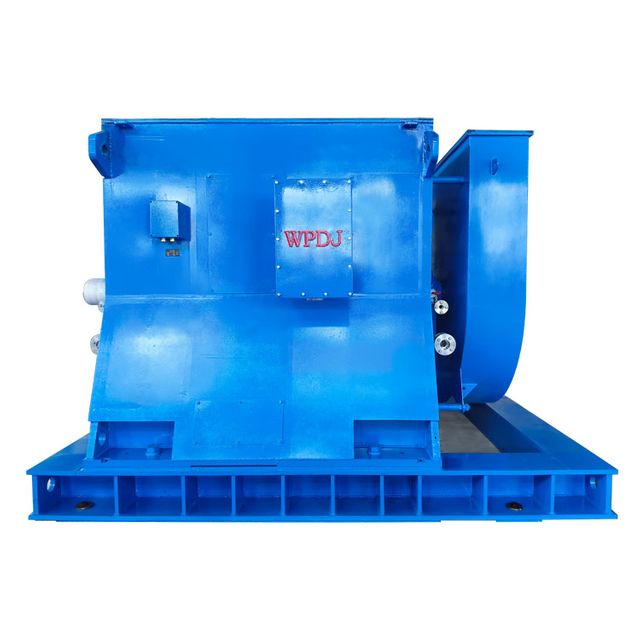

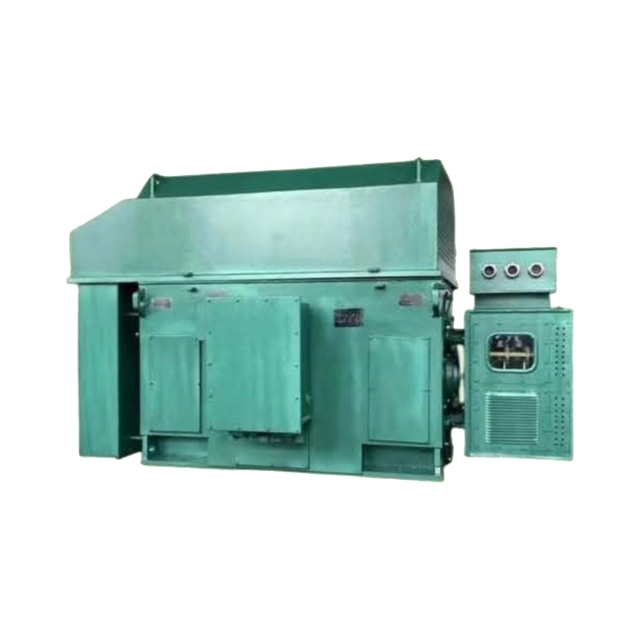

YRKK 绕线转子 + Z4 直流,高启动转矩,6kV

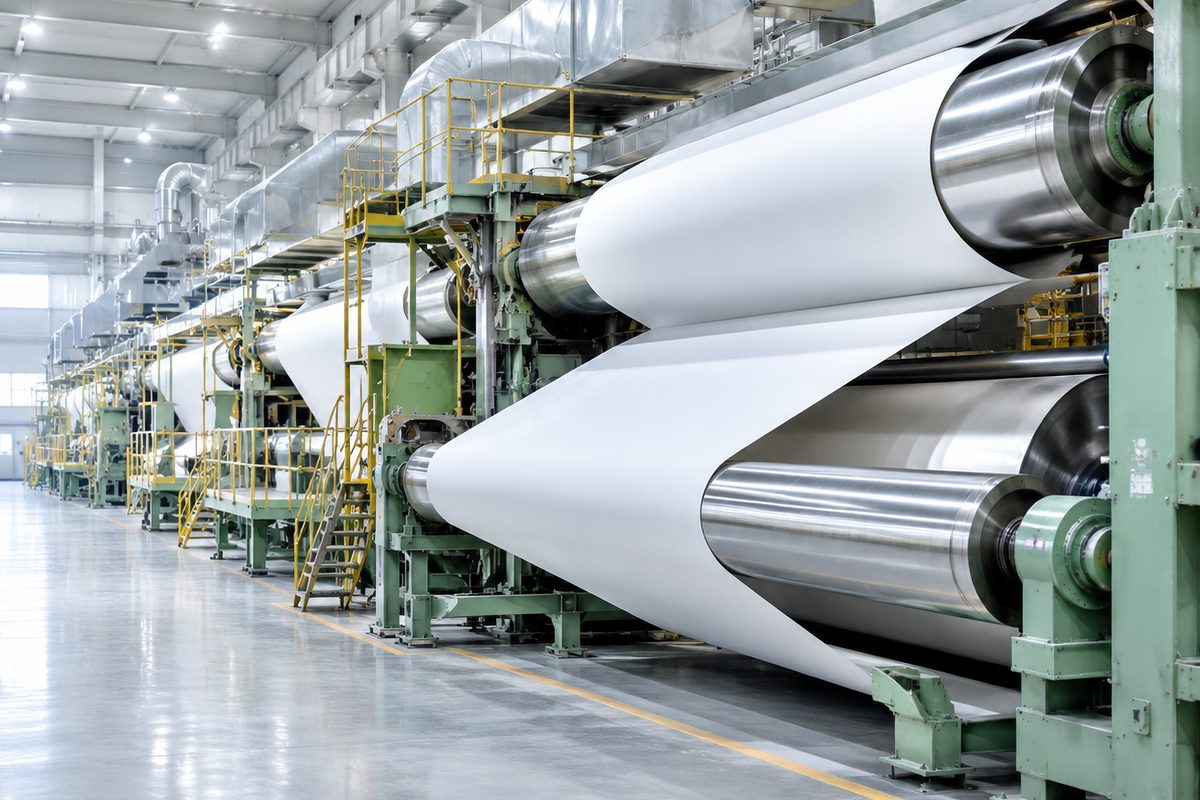

造纸机主传动

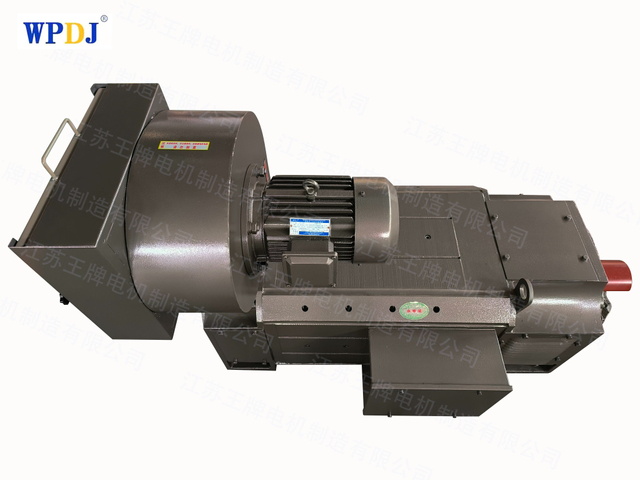

Z4-250 直流,精密调速,440V

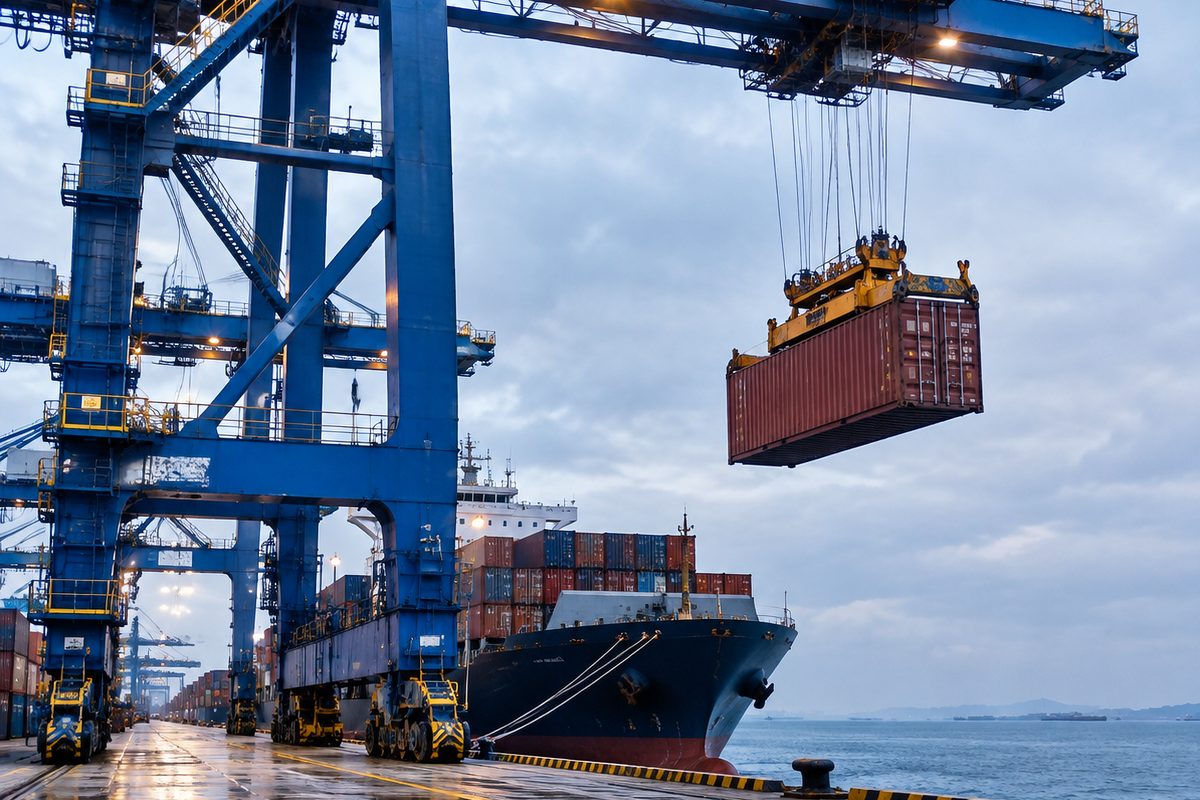

冶金 / 港口起重机

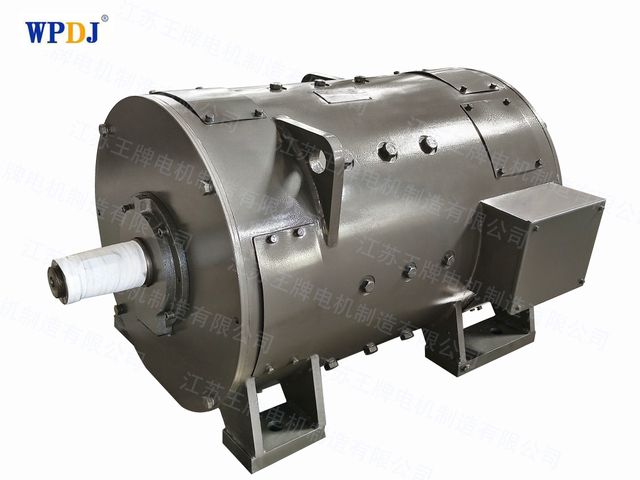

ZZJ-816/818 直流,150-186kW,高转矩,CE

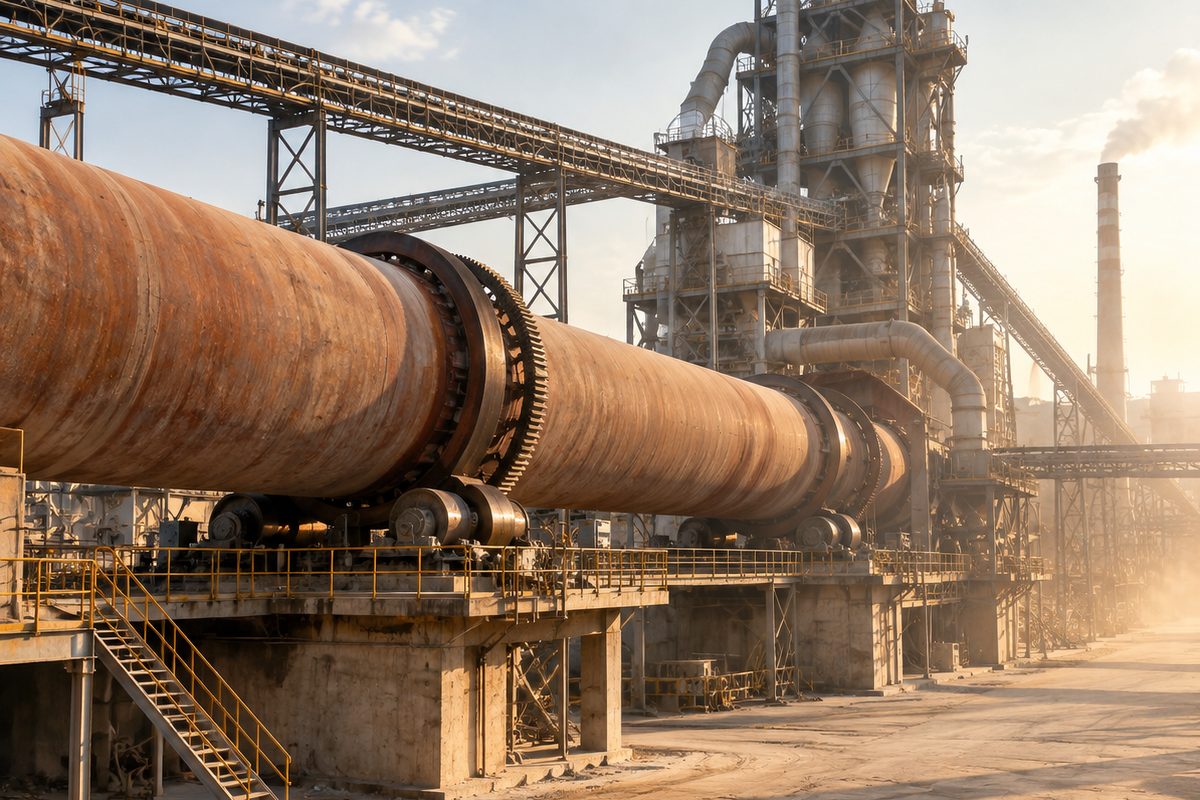

水泥厂(回转窑、磨机、高温风机)
YKK/YRKK 高压 + TYPKK 永磁,6kV/10kV,IE3 以上效率

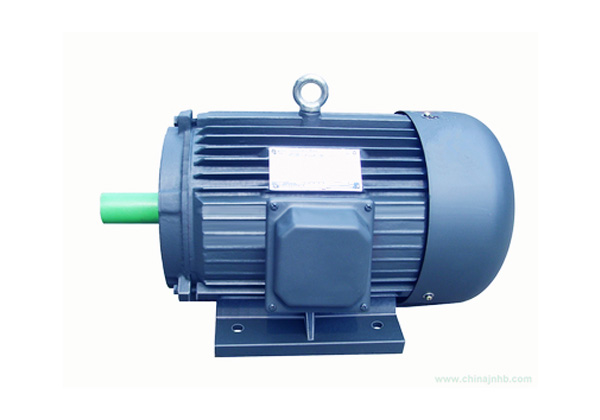

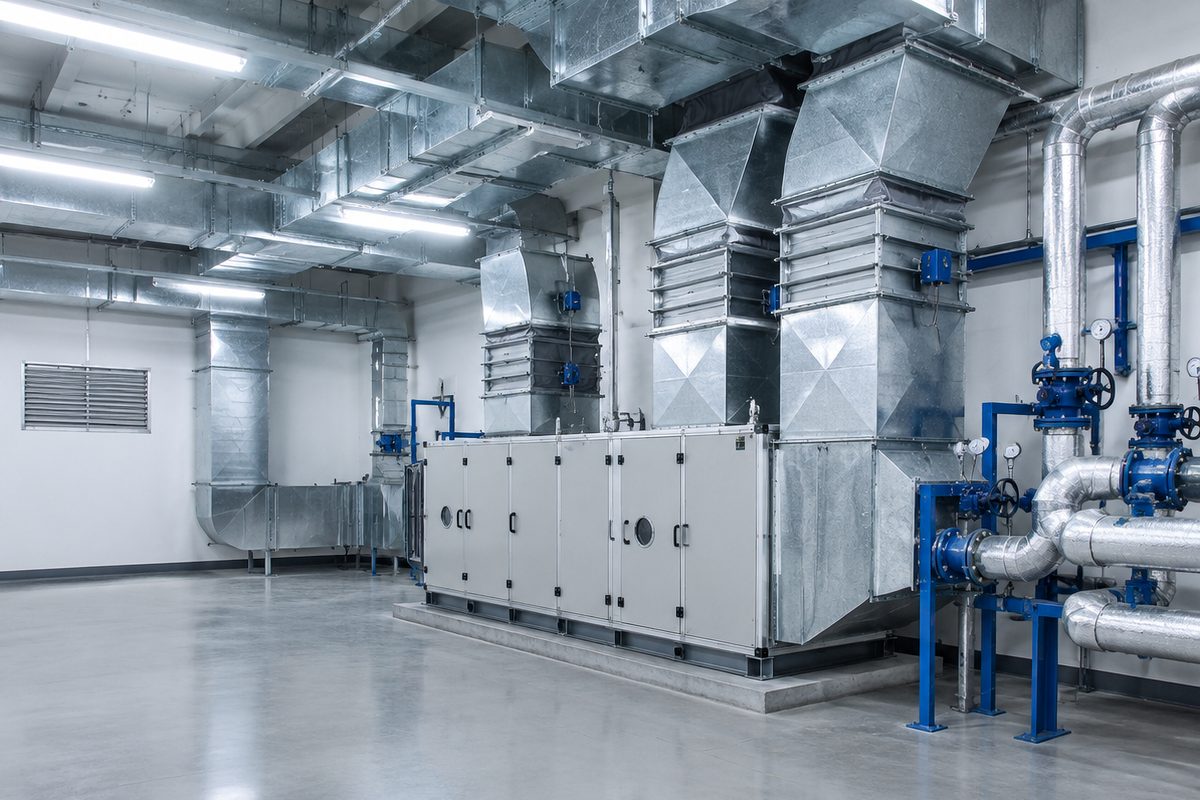

暖通 / 风机

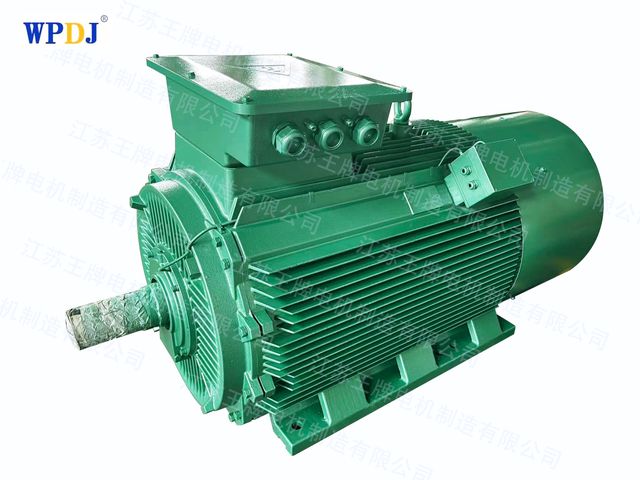

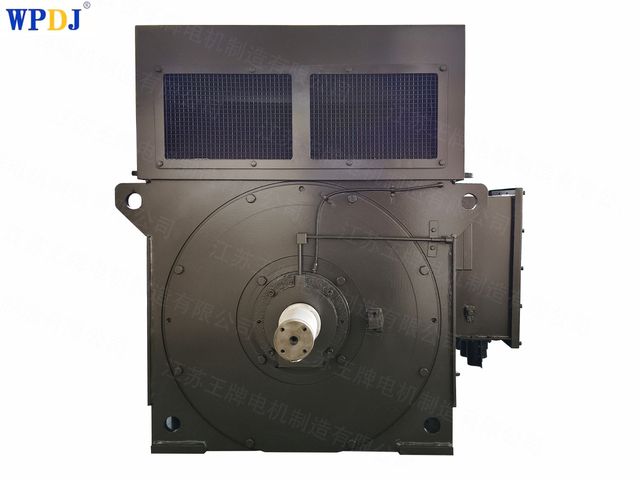

Y2 系列鼠笼式,低振动,寿命长
